| Motherboard
|
- EATX (305mm x 280mm) [12" x 11"]
- SSI-CEB (305mm x 267mm) [12" x 10.5"]
- ATX (305mm × 244 mm) [12" × 9.6"]
- MicroATX (245 x 245mm) [9.6" × 9.6"]
- FlexATX (229 × 191 mm) [9" × 7.5"]
- Mini-DTX (203mm × 170 mm) [8" × 6.7"]
- Mini-ITX (170mm × 170 mm) [6.7" × 6.7"]
- NOTE: Motherboard mounting tray can be slid out of case to simplify assembly and maintenance
|
| CPU Air Coolers
|
- up to 153mm tall
- Noctua NH-D12L recommended
|
| CPU Liquid Coolers
|
- 1x 360mm liquid cooler
- or
- 1x 240mm liquid cooler
- or
- up to 3x 120mm liquid coolers
- LIQUID COOLING NOTE: radiators reduce the available depth inside the case for long GPUs and PCIe cards
- See notes in "GPU / PCIe Cards" section
|
| Fan Mounting
|
- Mid-chassis
- 3x 120mm fans, up to 38mm thick

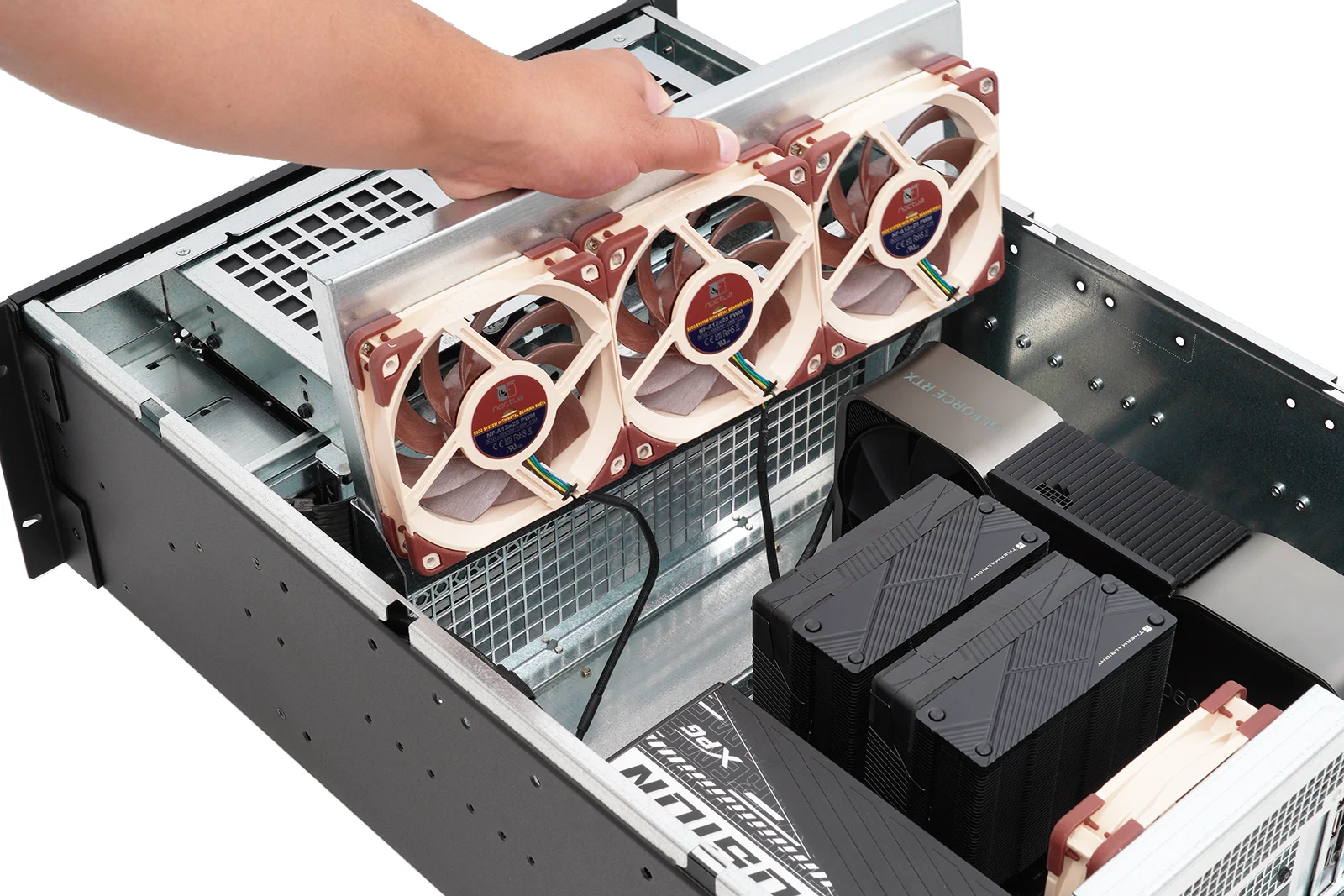

- fan bracket can be removed with no tools to allow easy access to fan screws
|
| GPU / PCIe Cards
|
- 8x full height PCIe card slot cutouts

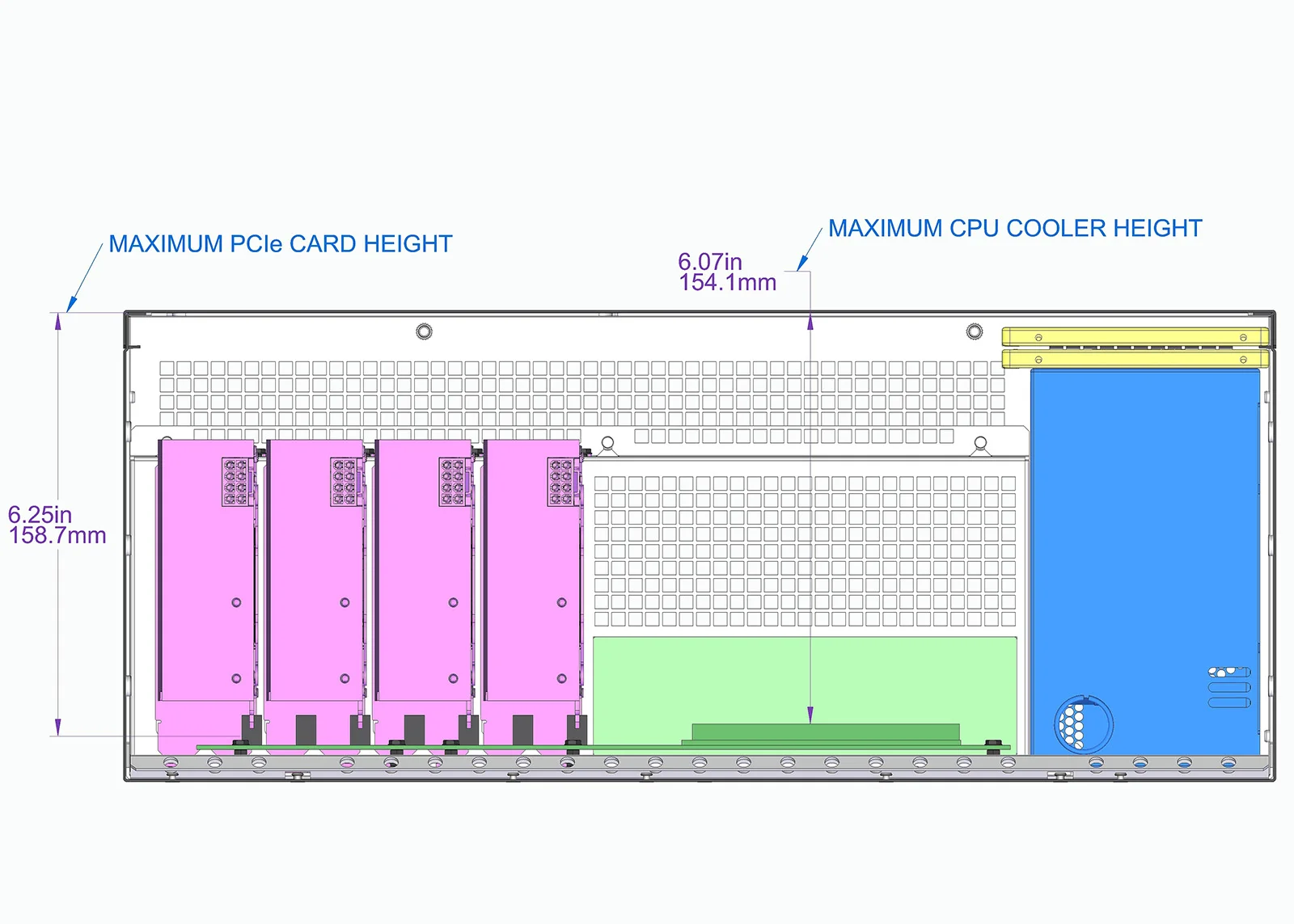

- Maximum card height: 158mm (card and power connector must be ≤158mm tall)

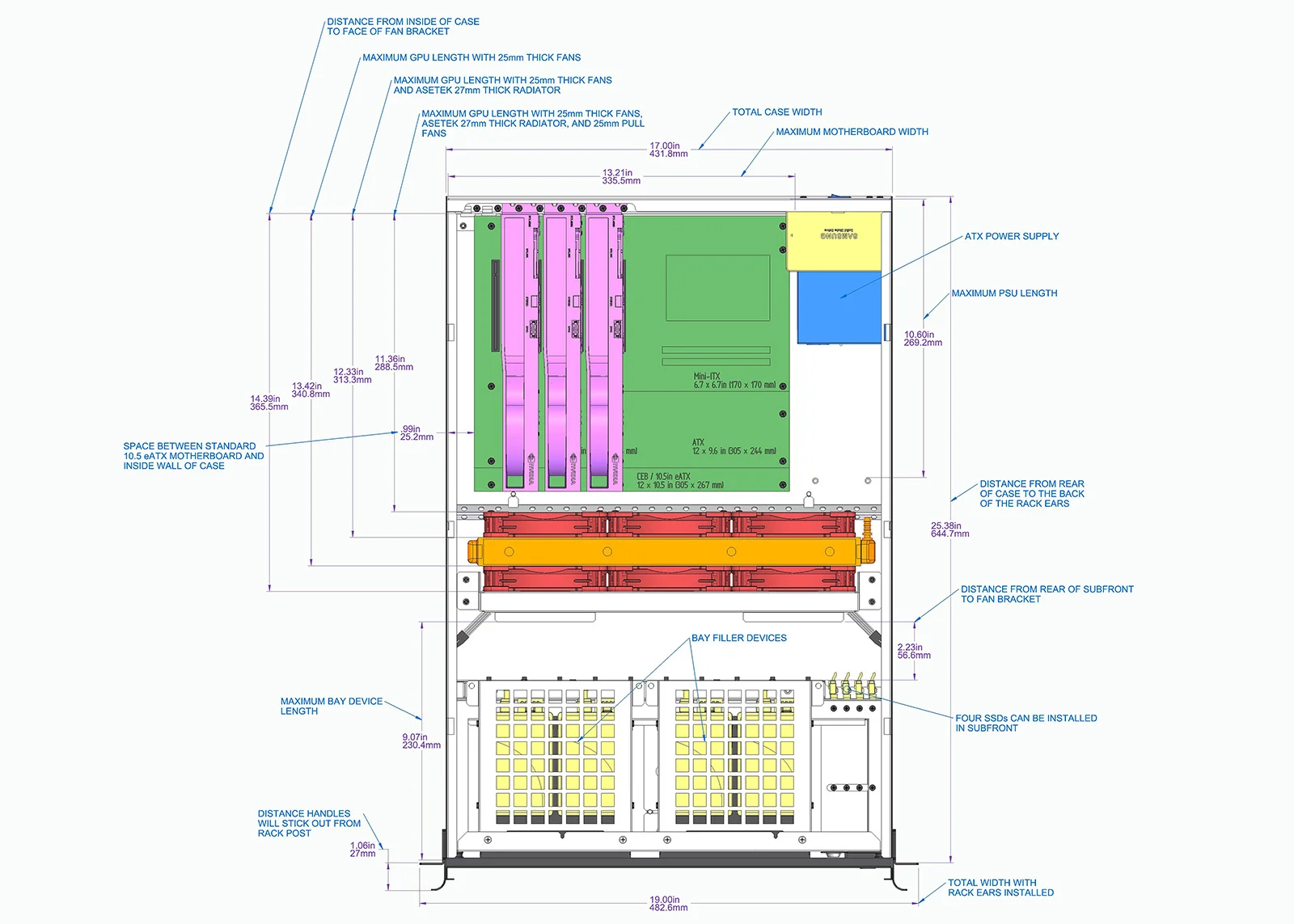

- Maximum card length, with 25mm thick fans: 316mm
- Maximum card length, with Asetek radiator and 25mm fans: 289mm
|
| Storage
|

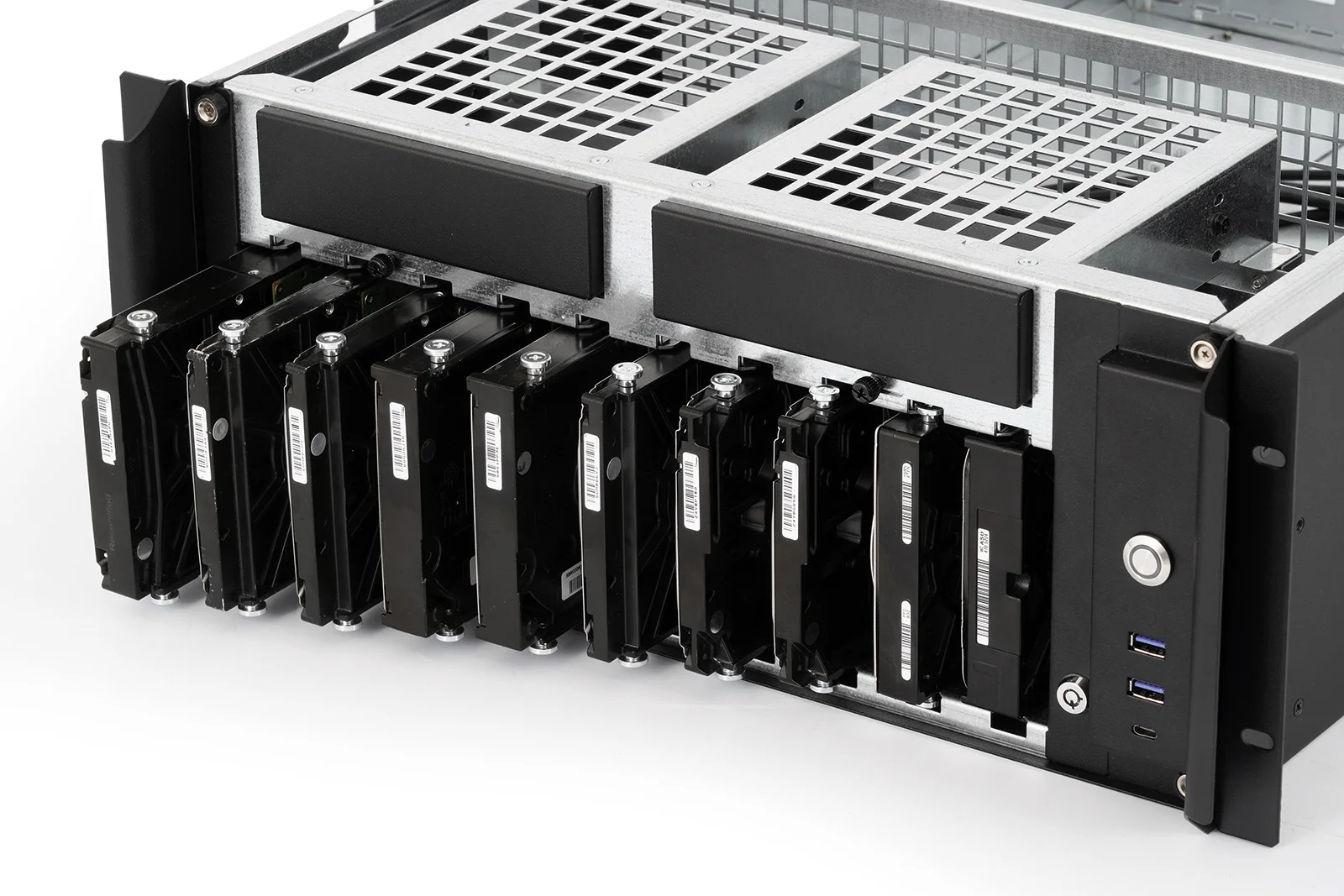

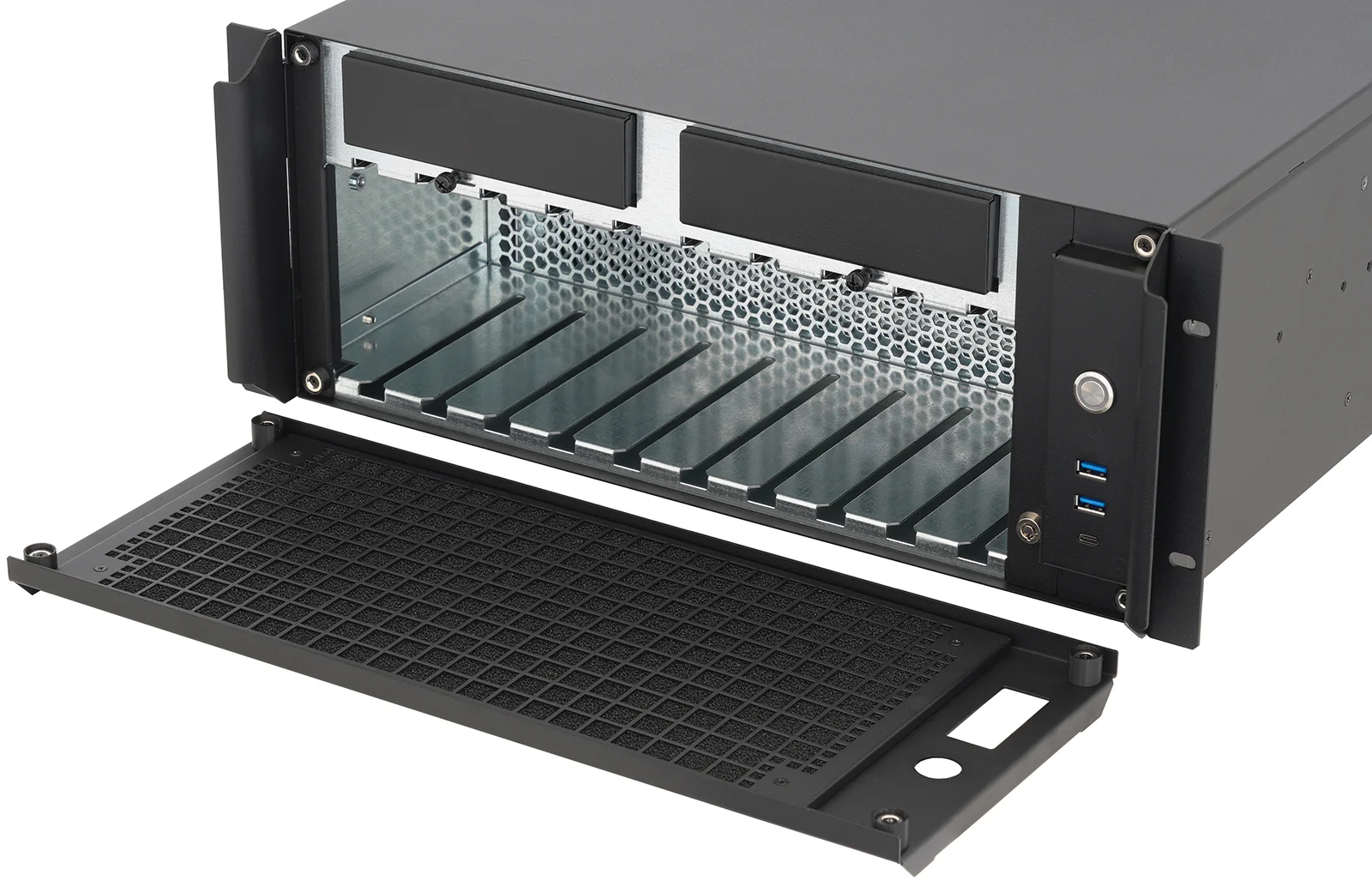

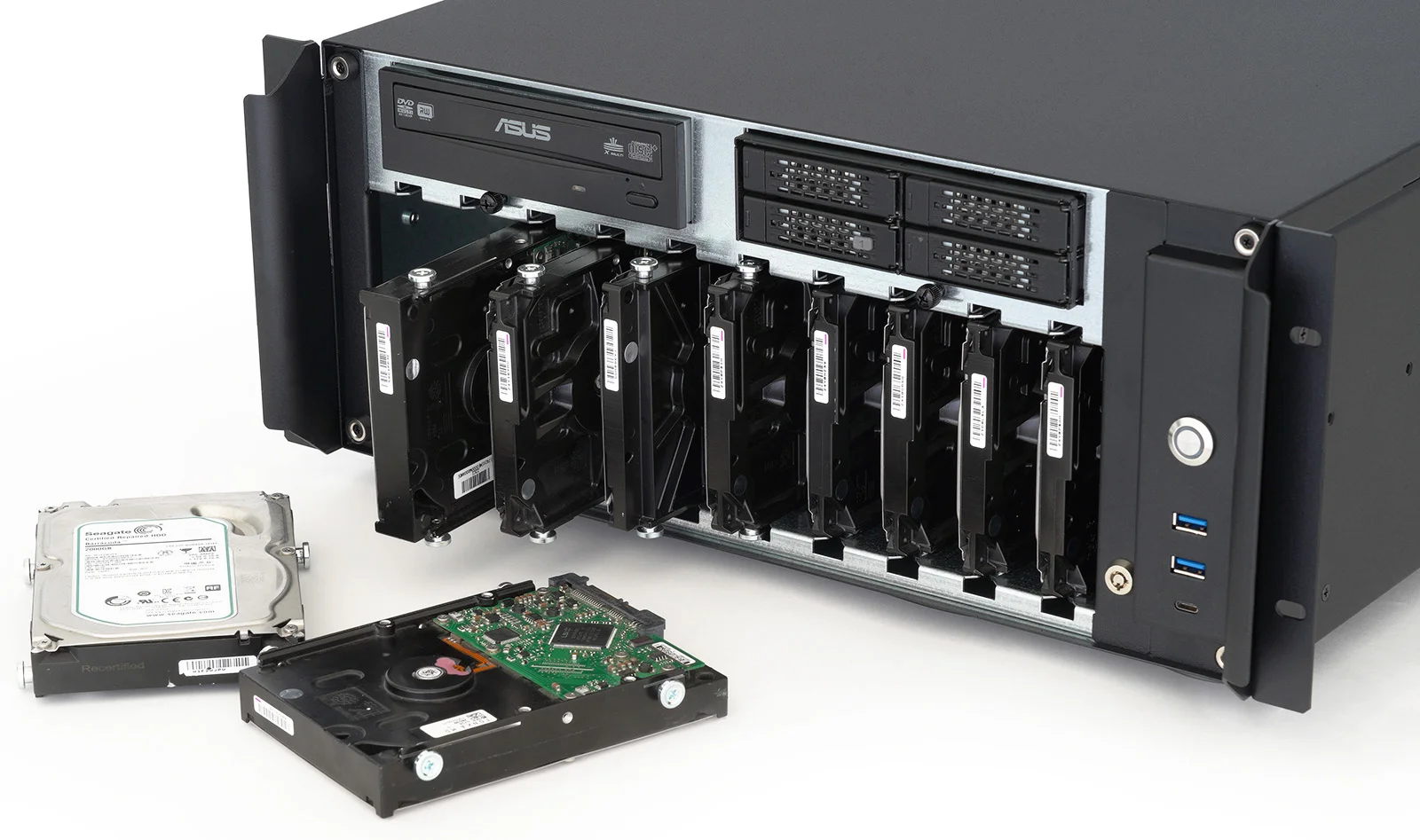

- Ten(10) 3.5" SAS or SATA Hard Drive Disks
- Case includes 10x SATA/SAS SFF-8482 male to SATA female adapters (preinstalled in case)
- 4x shoulder screws attached to 3.5" HDDs
- These shoulder screws guide HDDs through slots and align the drive to a backplane mounted SATA to SATA adapter
- User must connect SATA data and power cables on inside of case to these SATA to SATA adapters
- Case has a locking mechanism and key, as well as thumb screws, to secure drives
- Case also includes two(2) SATA power distribution cables (1x SATA power male to 5x SATA power female)
- Case does NOT include any data cables
- Hot-swap support can depends on your HBA / RAID card, motherboard, and OS.
- Please note that connecting a SAS drive to a SATA port will operate as SATA.
- A SAS controller can control SATA drives, but a SATA controller cannot control SAS drives.
- Four(4) 2.5" SSD/HDD mounting points (behind power button and USB front panel area)
- Two(2) 2.5" SSD/HDD mounting points above ATX power supply cutout on rear (each via 2x M3 screws into side of SSD)
- Two(2) 5.25" bays for IcyDock type NVME / U.2 / U.3 storage devices
- Each 5.25" bay includes a 5.25" filler blank that can mount 1x 3.5" HDD, and 2x 2.5" SSD
- Without third party devices the default case has a maximum storage of 12x 3.5" HDD, and 10x 2.5" SSD
|
| Front Panel I/O
|
- 1x USB C 10Gbps Port
- 1x USB 3.0 Ports
- 1x Momentary Switch / Power Status LED (Ring Shape, White)
|
| Power Supply
|
- ATX
- Maximum of 270mm length
- Redundant ATX power supply via FSP-Twins available up to 900W
- Case can be customized by Sliger to use any commercially available redundant power supply.
- Customization requires 10 piece MOQ (Minimum Order Quantity), and a one time $500 design charge.
|
| Material
|
- Chassis
- ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel
- Front Panels
- ASTM-A-653 G30 Zero Spangle 18 Gauge Galvanized Steel
- Rack Ears
- ASTM-A-653 G30 Zero Spangle 14 Gauge Galvanized Steel
|
| Finish
|
- Fine texture powder coated chassis and panels
- Unpainted chassis, panels, or parts available on request (for DIY paint jobs)
- Custom powder coat finishes are avaialble, additional labor/material charges and 10 unit MOQ (Minimum Order Quantity) will apply.
|
| Branding
|
- Case is unbranded on interior and exterior of chassis.
- Optional logo screen printing (full color) on front panel for business customers, MOQ 10 units
- Custom logo requires a one time design fee of $200 to create proofs and output files
|
| Outside Dimensions
|
- 24.89" x 17.00" x 4U (6.96") [DxWxH]
- 632mm x 432mm x 176.75mm [DxWxH]
- Depth is measured from back side of rack ear
|
| Weights
|
- Chassis
-
- Rack Slide Kits
-
- Packaging Materials (Box, Tape, Foam Corners)
-
|
| Shipping Box Dimensions
|
- 31" x 21" x 11"
- Double Wall
|
| Rack Rails
|
- Sliger PM-Series Ball Bearing Slides
- General Devices C300-S Series
|
| Warranty
|
- Case
- 5 Year Warranty [Chassis, USB cables, Power Button, SATA Adapters]
- Liquid Coolers & Fans
- 3 Year Warranty
- Please see our warranty policy for additional conditions, exclusions, and limitations.
|
| Homologation
|
- HTS Tariff Code
- 8473.30.00.02
- Country of Origin
- United States of America
| Rev Control
|
- 1.0 (4/18/22 - **/**/**)
- Initial Release
|
| |
