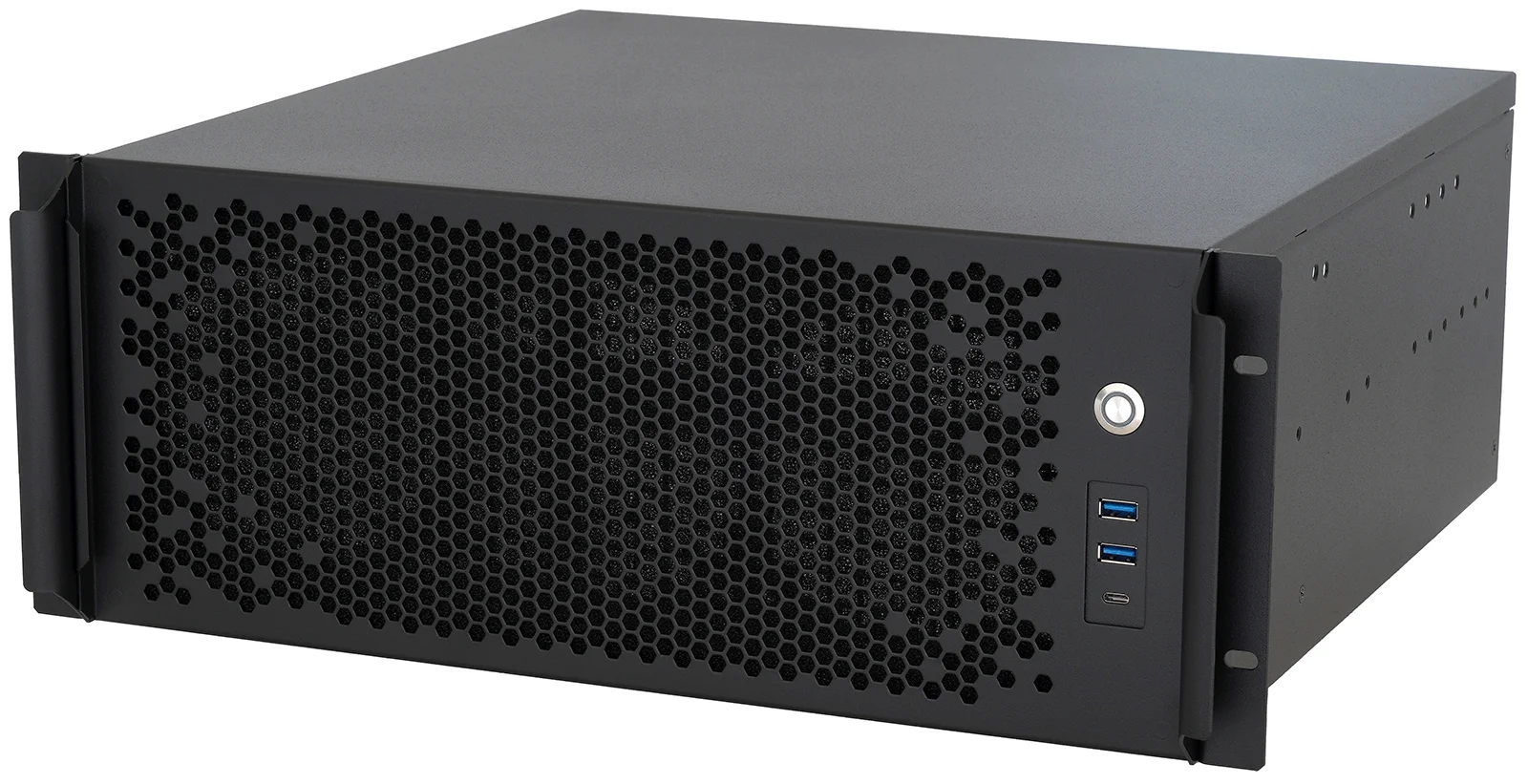

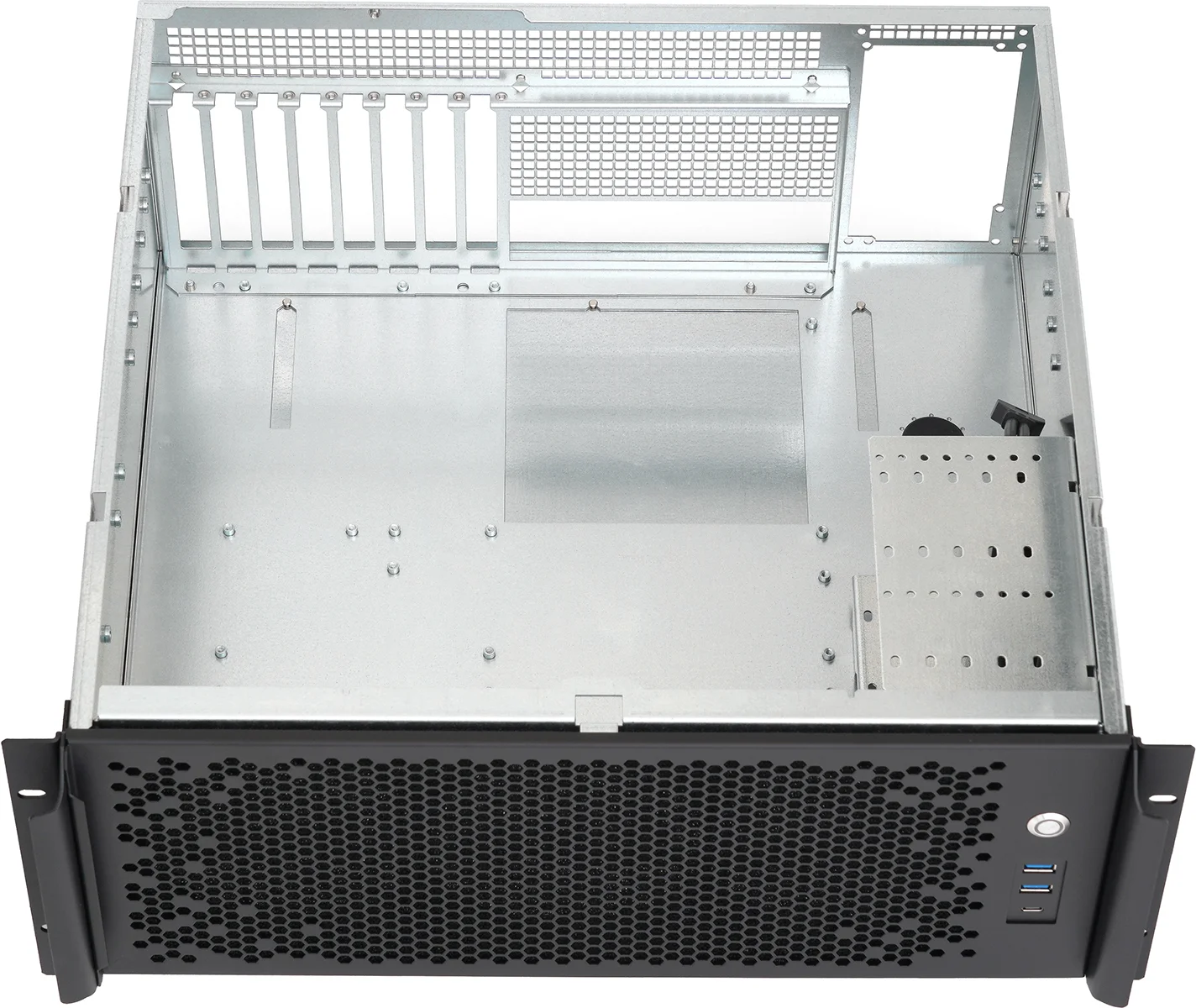

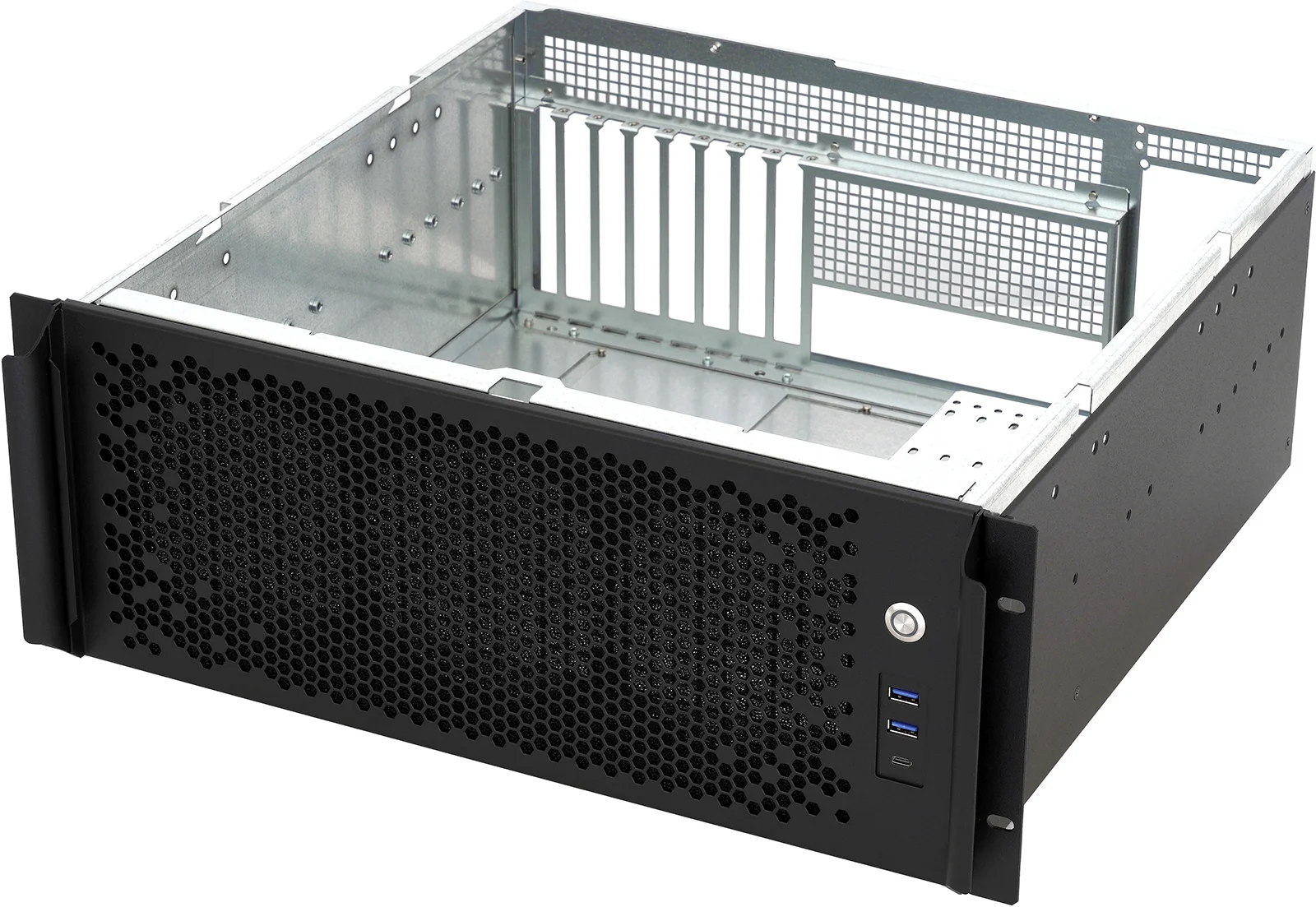

CX4170a | 17" deep 4U with 360mm AIO and HDD storage |
- Supports SSI-EEB, SSI-CEB, EATX, and ATX motherboards
- Up to four(4) 120mm fans; three(3) front mounted and one(1) exhaust
- Air cooling support for CPU air coolers up to 153mm tall
- Liquid cooling support for one(1) 360mm, one(1) 240mm or two(2) 120mm AIOs
- Eight(8) PCIe slot cutouts for PCIe cards and GPUs up to 158mm tall
- Configurable storage bracket for up to three(3) 3.5" HDD, eight(8) 2.5" SSD, or a mix of both
- Mounts one(1) ATX power supply, with options for redundancy
- Made in USA with US materials, guaranteed availability for 8+ years
|
|
Rails Backorder
Our 14" General Devices rails are currently on backorder, and will take additional time to ship. Any orders placed with the 14" General Devices rails will ship without them, and a seperate shipment will go out once the rails are available again. There will be no extra charge with this additional shipment. We apologize for any inconvenience, and thank you in advance for your patience. Please contact us at sales@sliger.com or 1-775-356-5595 for more details.
Replacement / Optional Parts

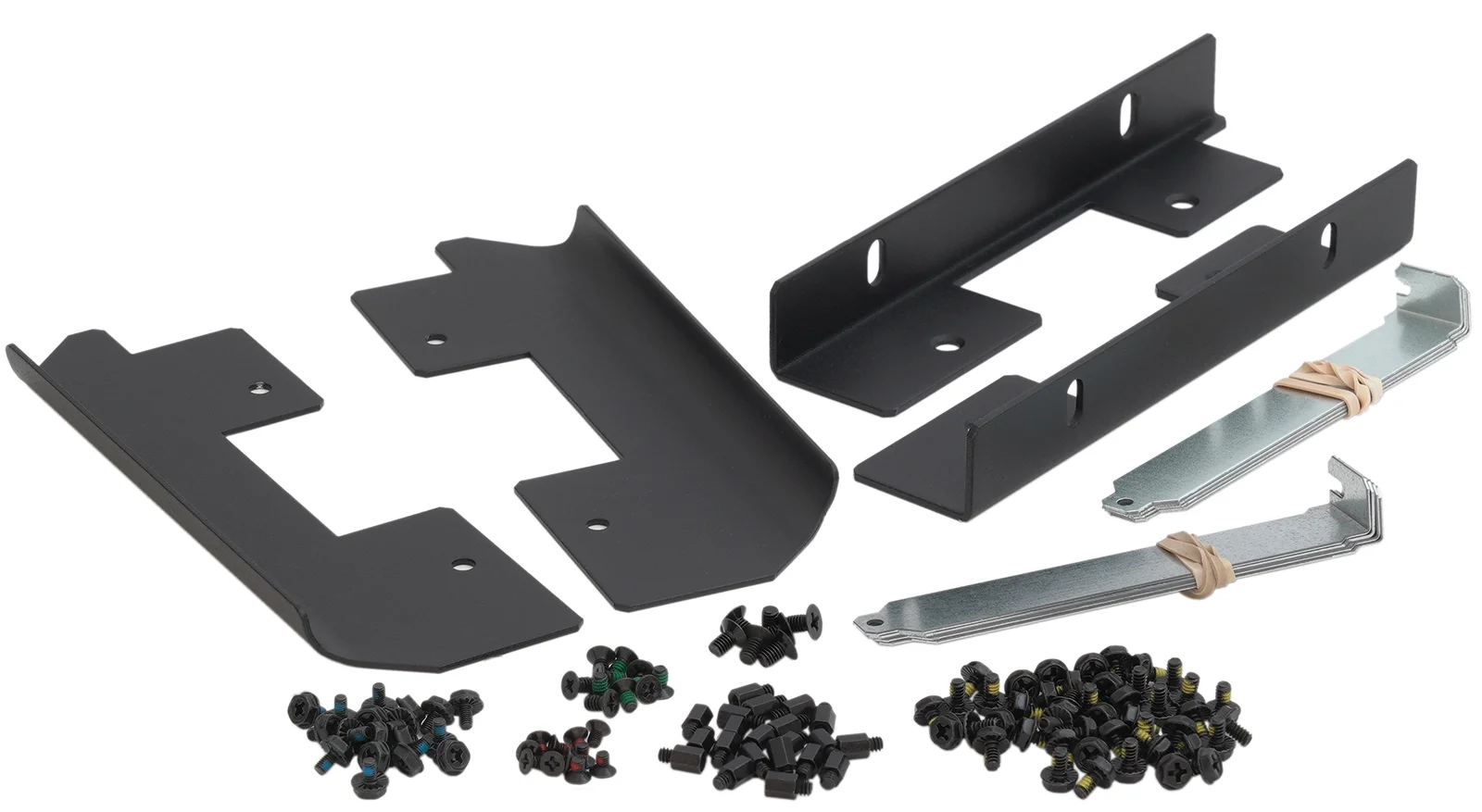

This page is for replacement parts for existing cases. New case orders per the configure tab include all required panels, brackets, cables, screws, and accessories for assembly per the options selected on that tab.
Technical Specifications |
Motherboard
|
- XL-ATX (325mm x 330mm) [12.8" x 13"]
- SSI-EEB (305mm x 330mm) [12" x 13"]
- SSI-CEB (305mm x 267mm) [12" x 10.5"]
- EATX (up to 325mm x 330mm) [up to 12.8" x 13"]
- ATX (305mm × 244 mm) [12" × 9.6"]
- MicroATX (245 x 245mm) [9.6" × 9.6"]
- FlexATX (229 × 191 mm) [9" × 7.5"]
- Mini-DTX (203mm × 170 mm) [8" × 6.7"]
- Mini-ITX (170mm × 170 mm) [6.7" × 6.7"]
|
CPU Air Coolers
|
|
---|
CPU Liquid Coolers
|

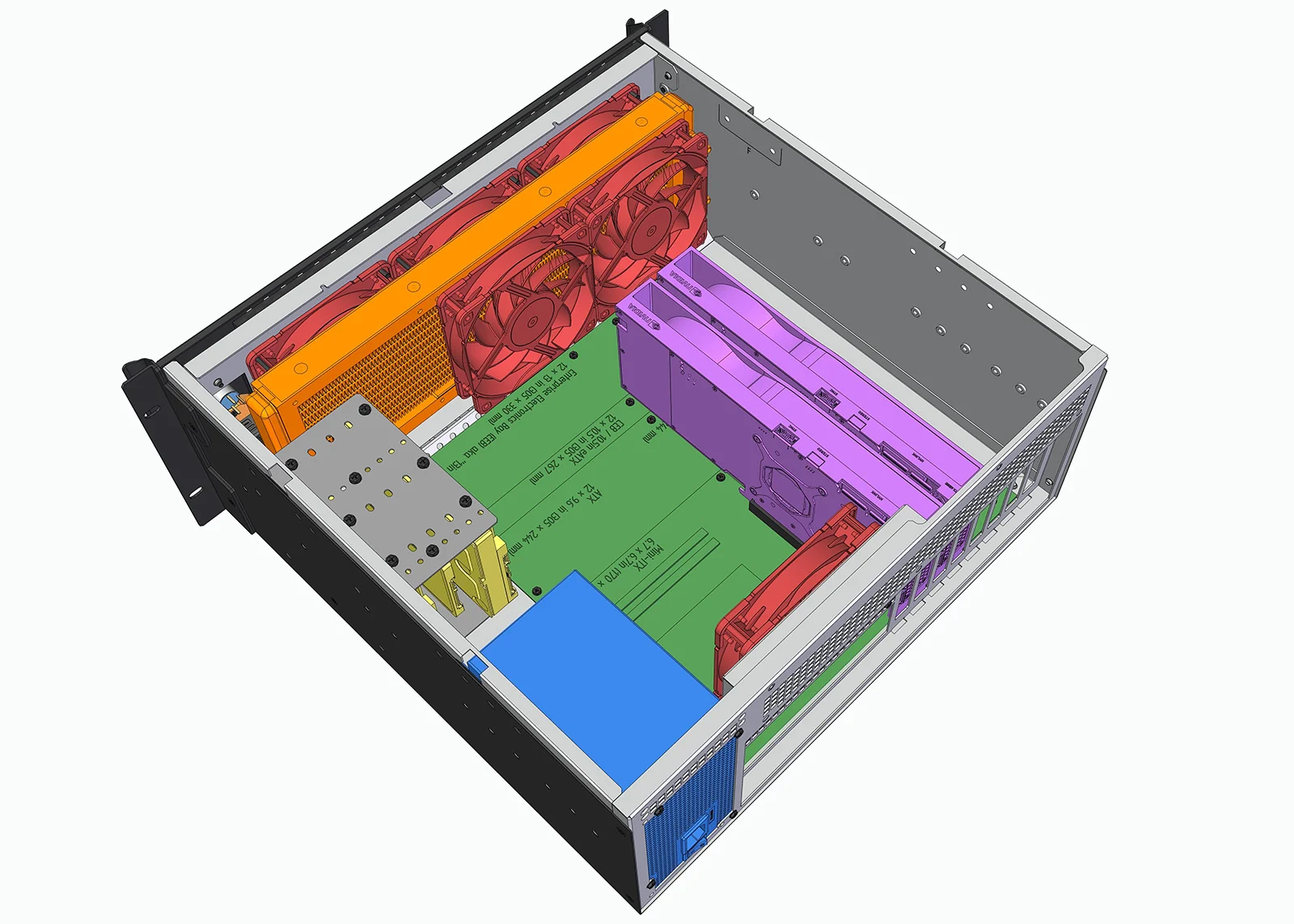

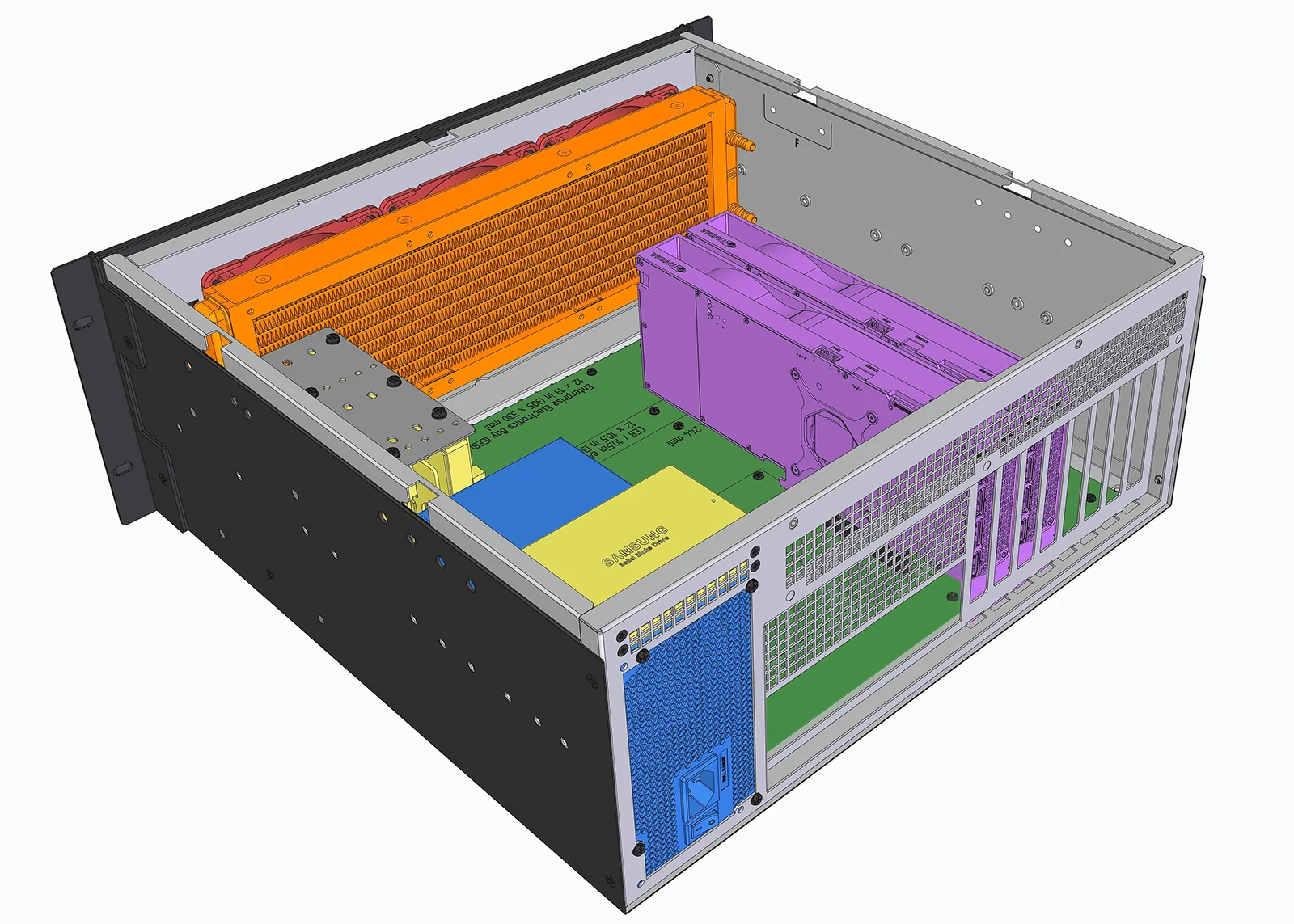

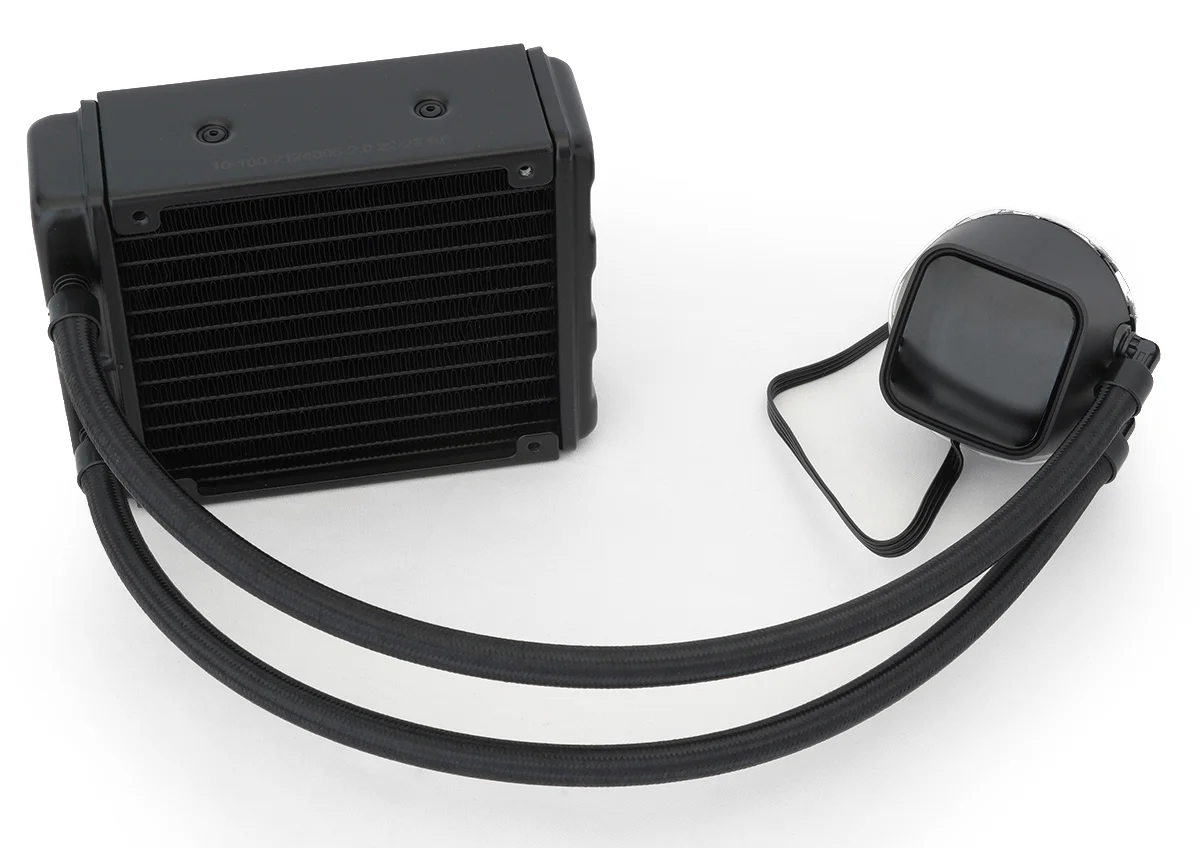

- Supports one(1) 360mm liquid cooler, one(1) 240mm liquid cooler, or two(2) 120mm liquid coolers
- Maximum radiator block width of 395mm supported
- 360mm radiator blocks over 27mm thick will interfere with internal storage bracket
- Case is designed around Asetek OEM AIO coolers
- List of Asetek OEM coolers offered by Sliger
- List of compatible CPU sockets and AIO retention kits

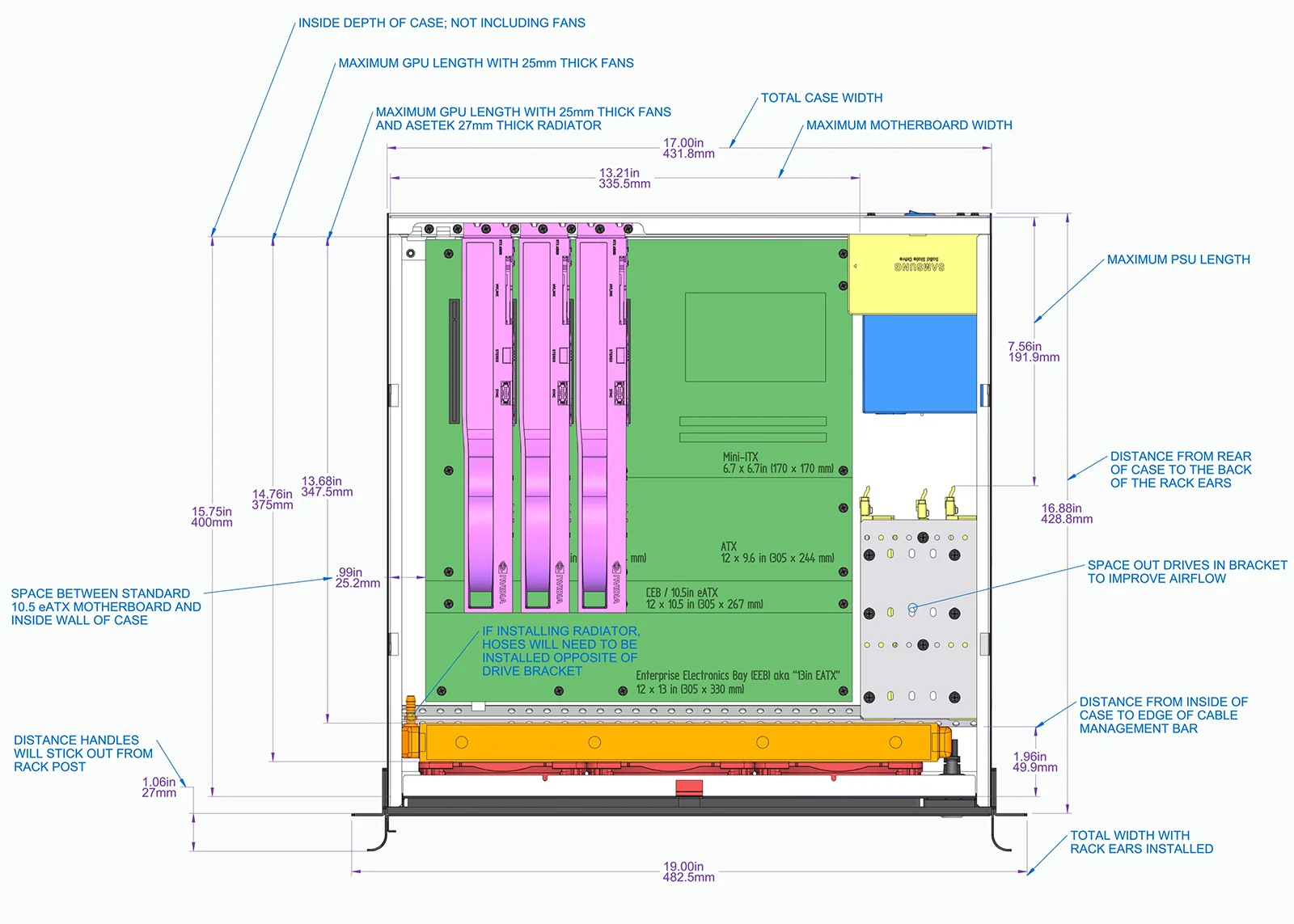

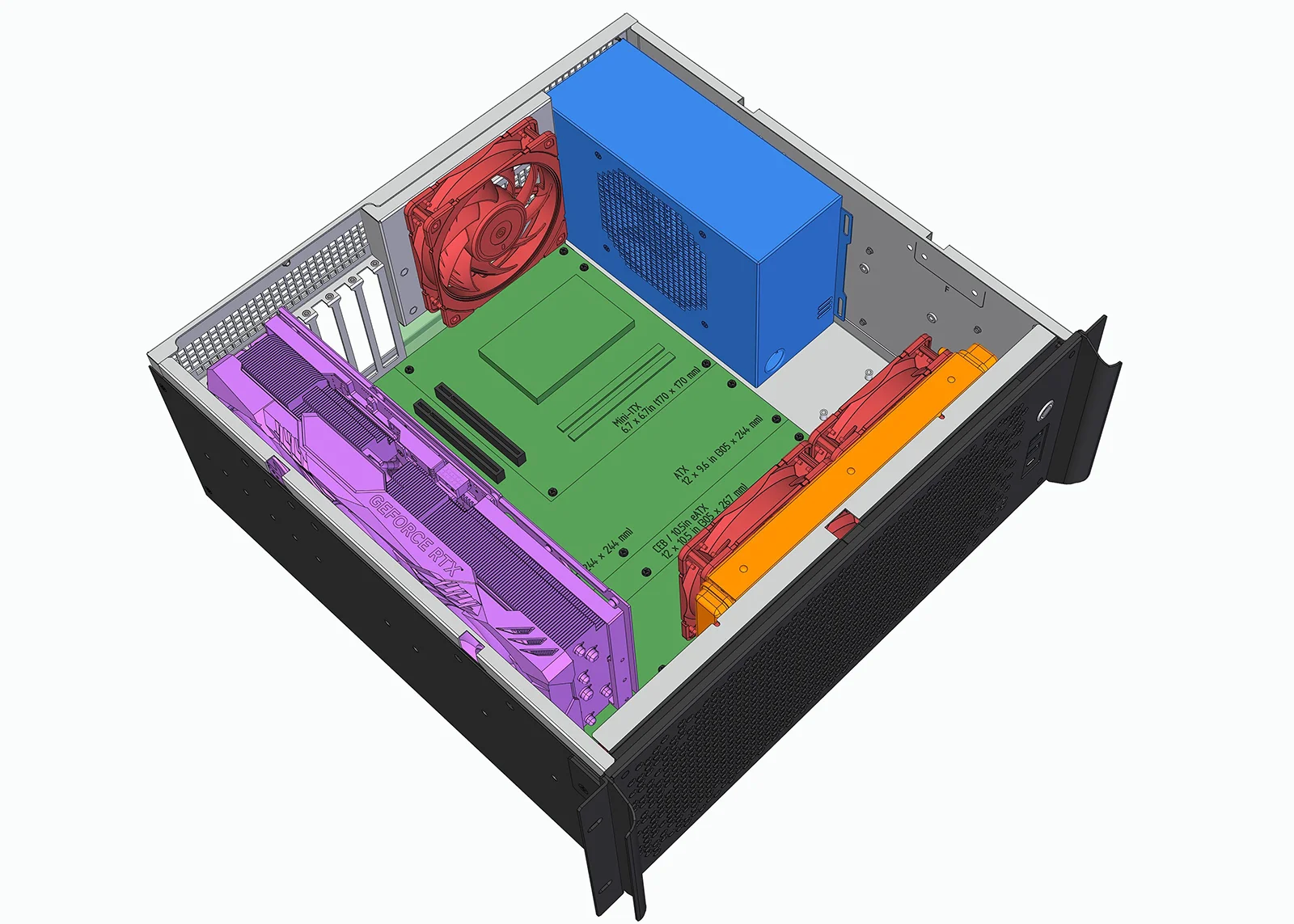

- Third party AIO cooler compatibility can be checked against this dimensioned drawing.
- Compatibility with AIO liquid coolers on GPUs is limited by case height.
|
---|

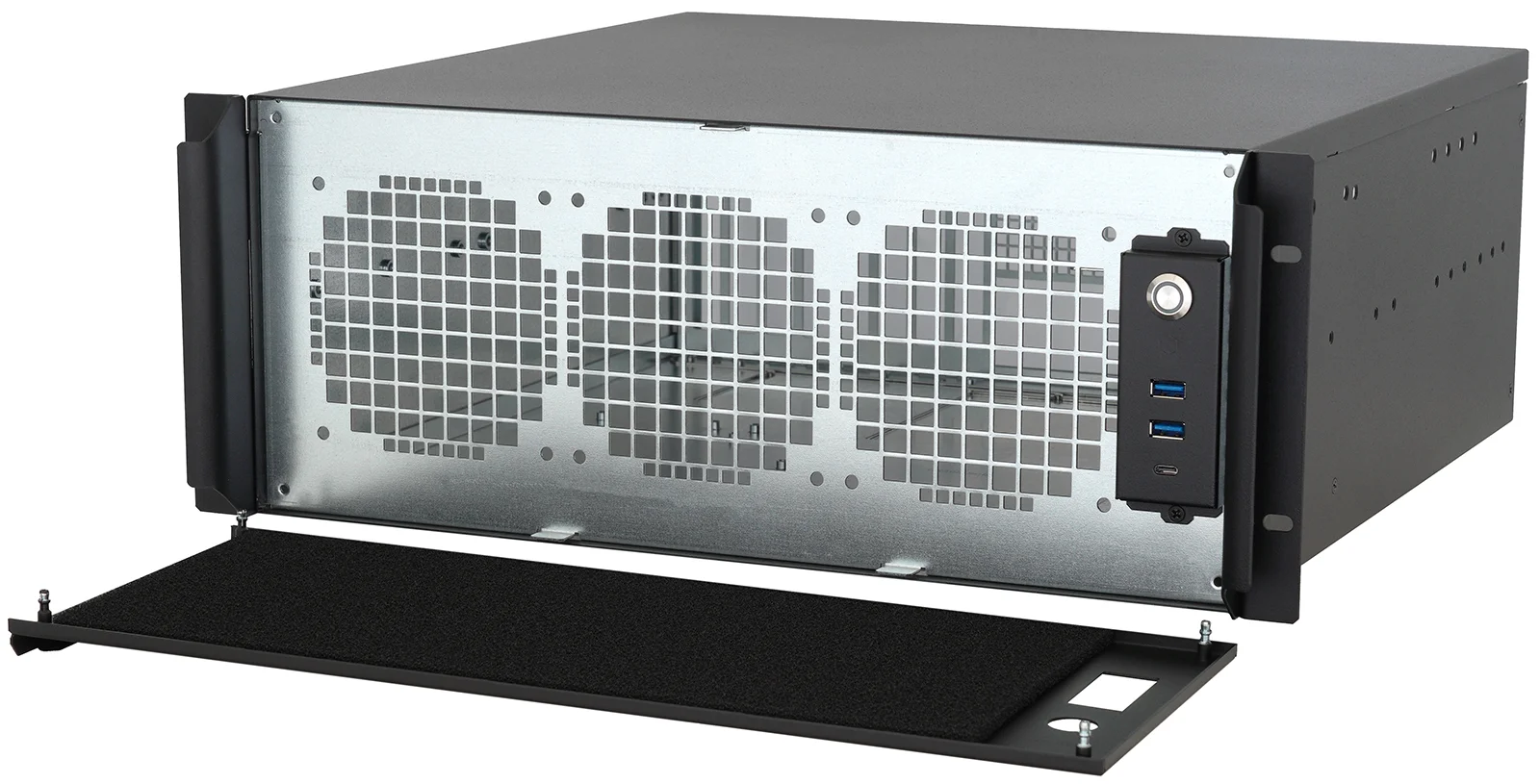

Dust Filter
|
- Includes one(1) washable / reusable dust filter
- 30ppi open cell reticulated polyether filter foam with flame resistant rating, UL94 HF1, UL FILE NO E93229(N)
- Alternate density and/or materials such as aluminum mesh available for OEM projects
|
Fan Mounting
|
- Front
- Three(3) 120mm fan mounting spots, up to 38mm thick
- Up to five(5) 120mm x 25mm fans when using 240mm radiator with push/pull fan configuration

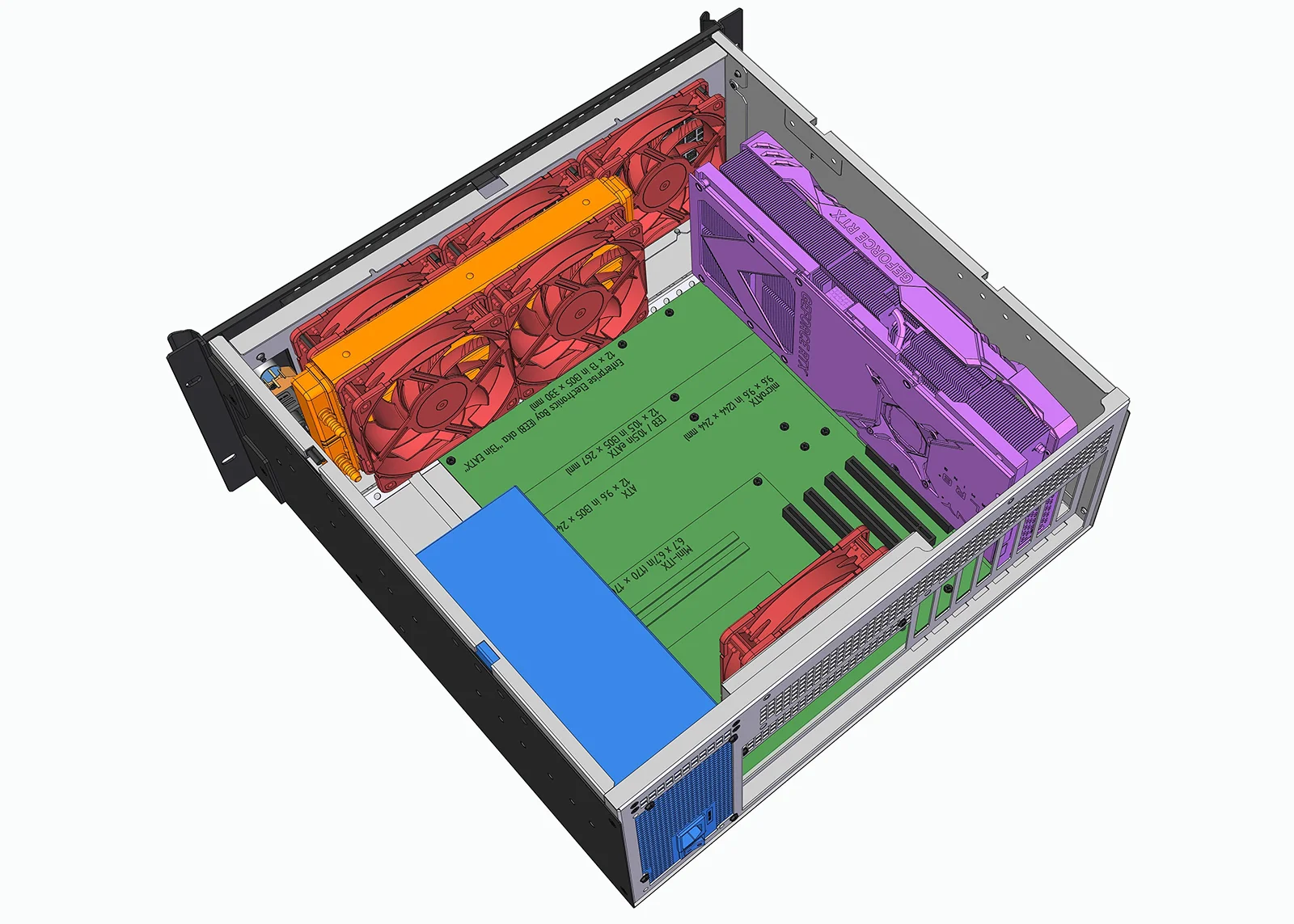

- Up to six(6) 120mm x 25mm fans when using 360mm radiator with push/pull fan configuration
- NOTE: Six(6) fan push/pull configuration does disable the use of internal storage bracket
- RECOMMENDED 120mm FANS: Noctua A12x25 PWM or Noctua A12x25 Chromax Black, Arctic P12 MAX, Phanteks T30,Corsair RS120 MAX, Lian Li UNI Fan P28, Lian Li UNI Fan SL-Infinity, or any fan from Dynatron.
- Rear

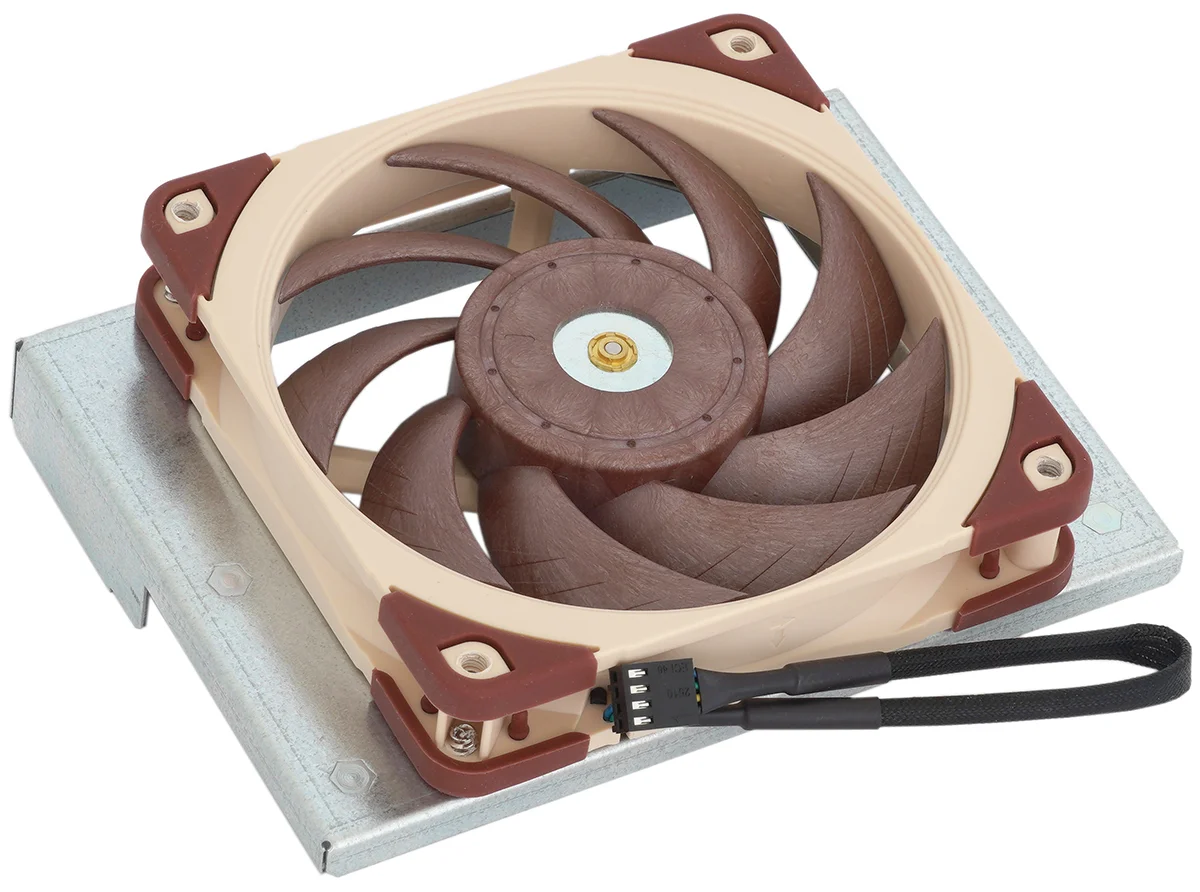

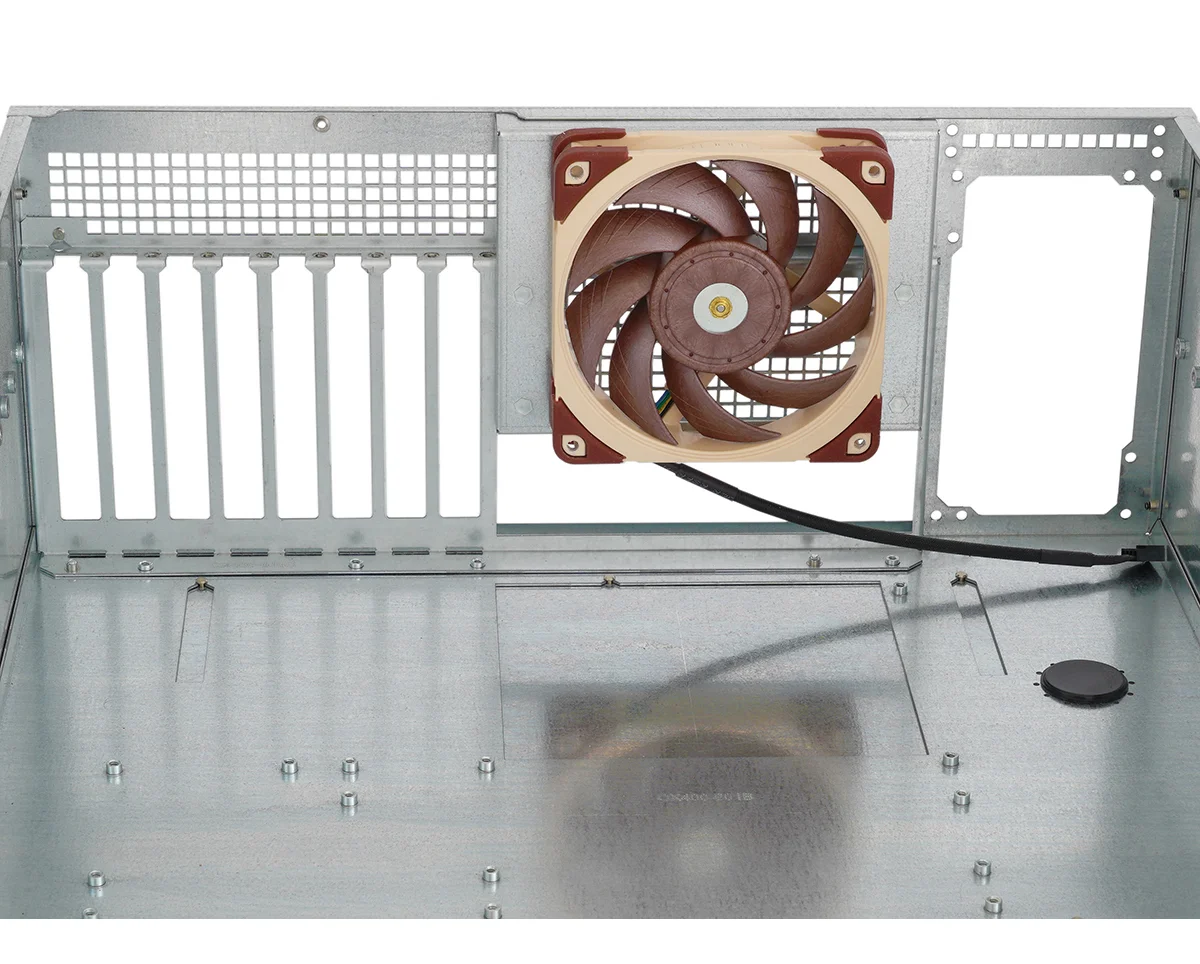

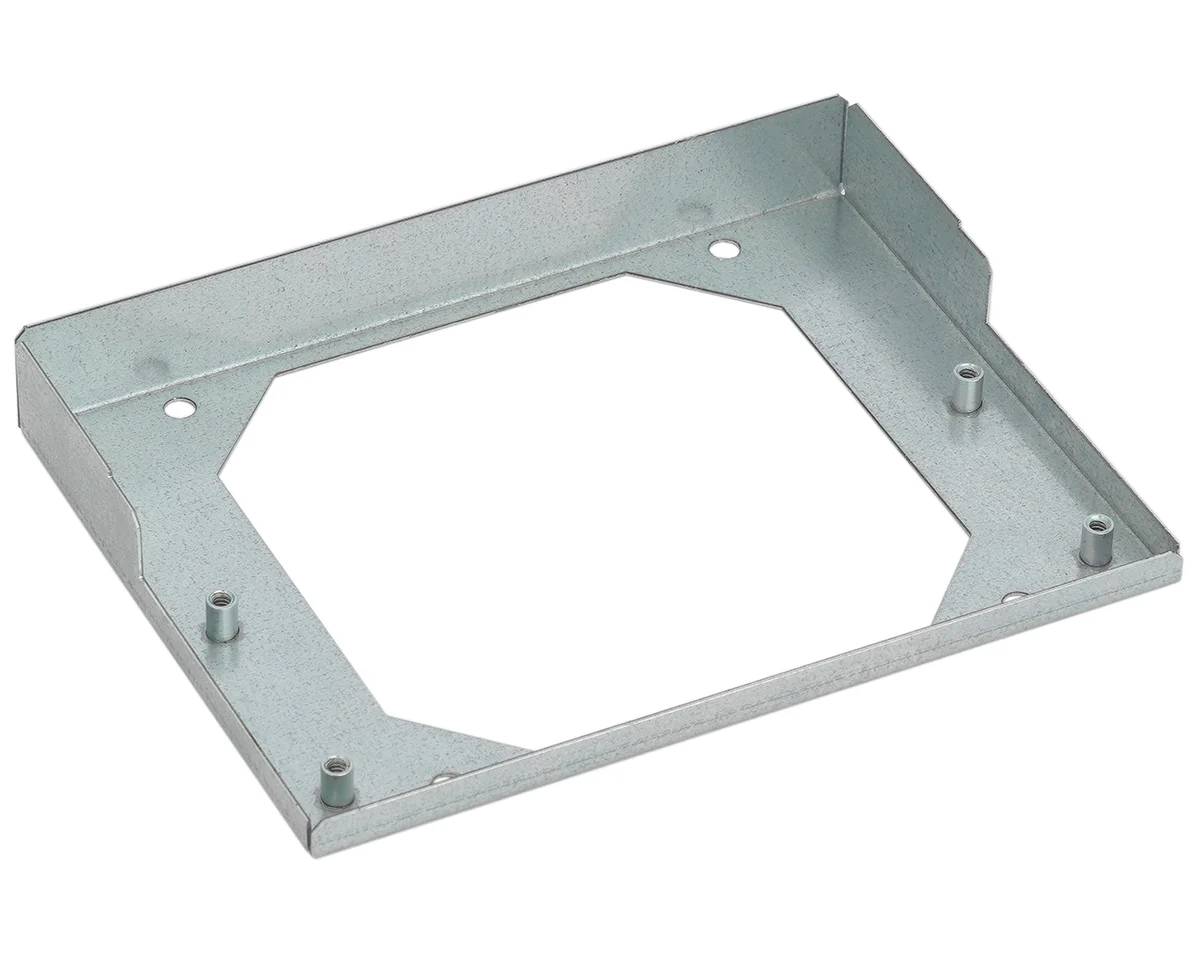

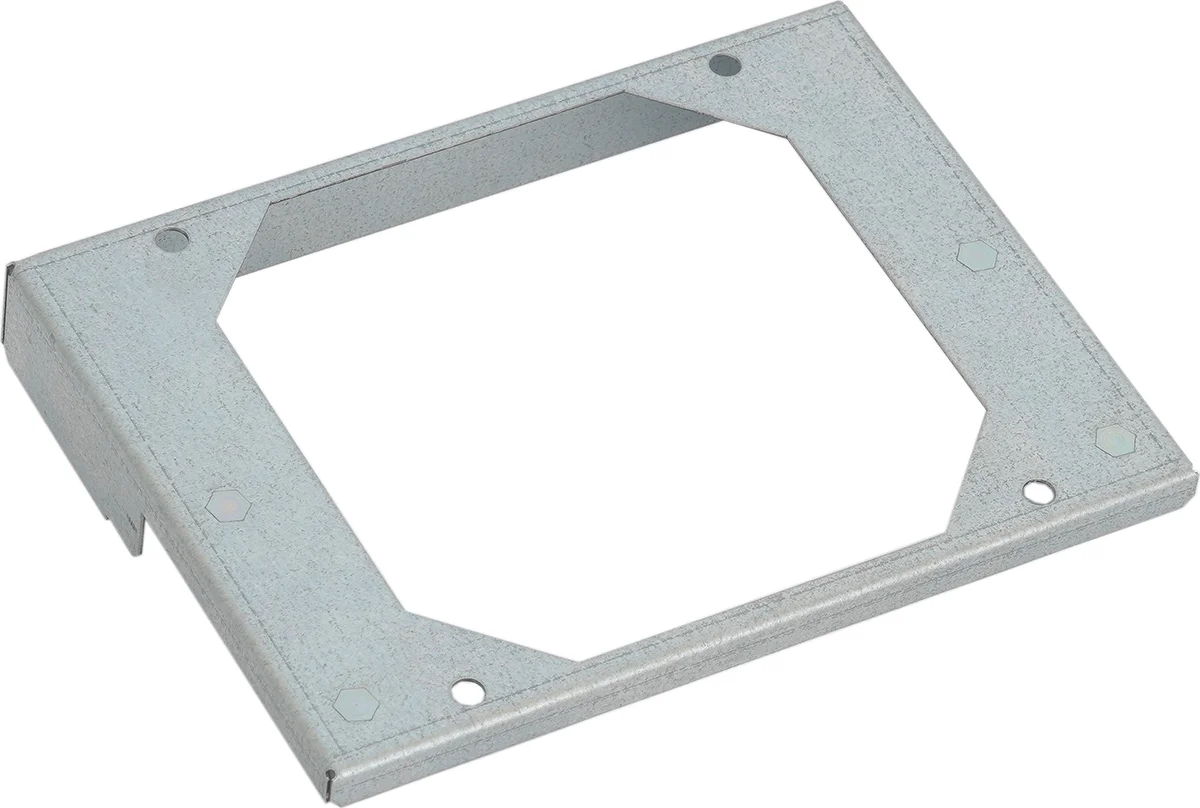

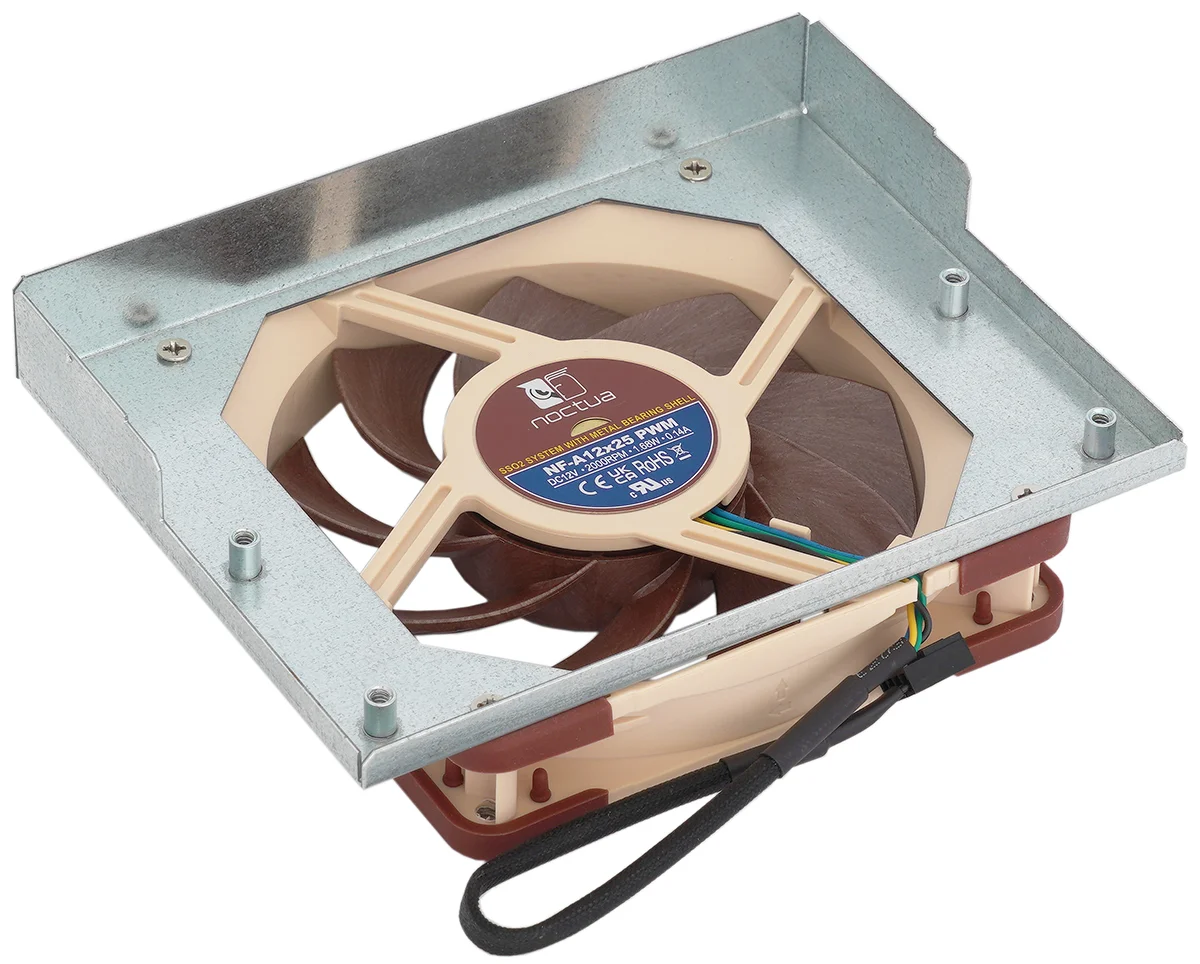

- Optional bracket for one(1) 120mm fan over motherboard IO shield

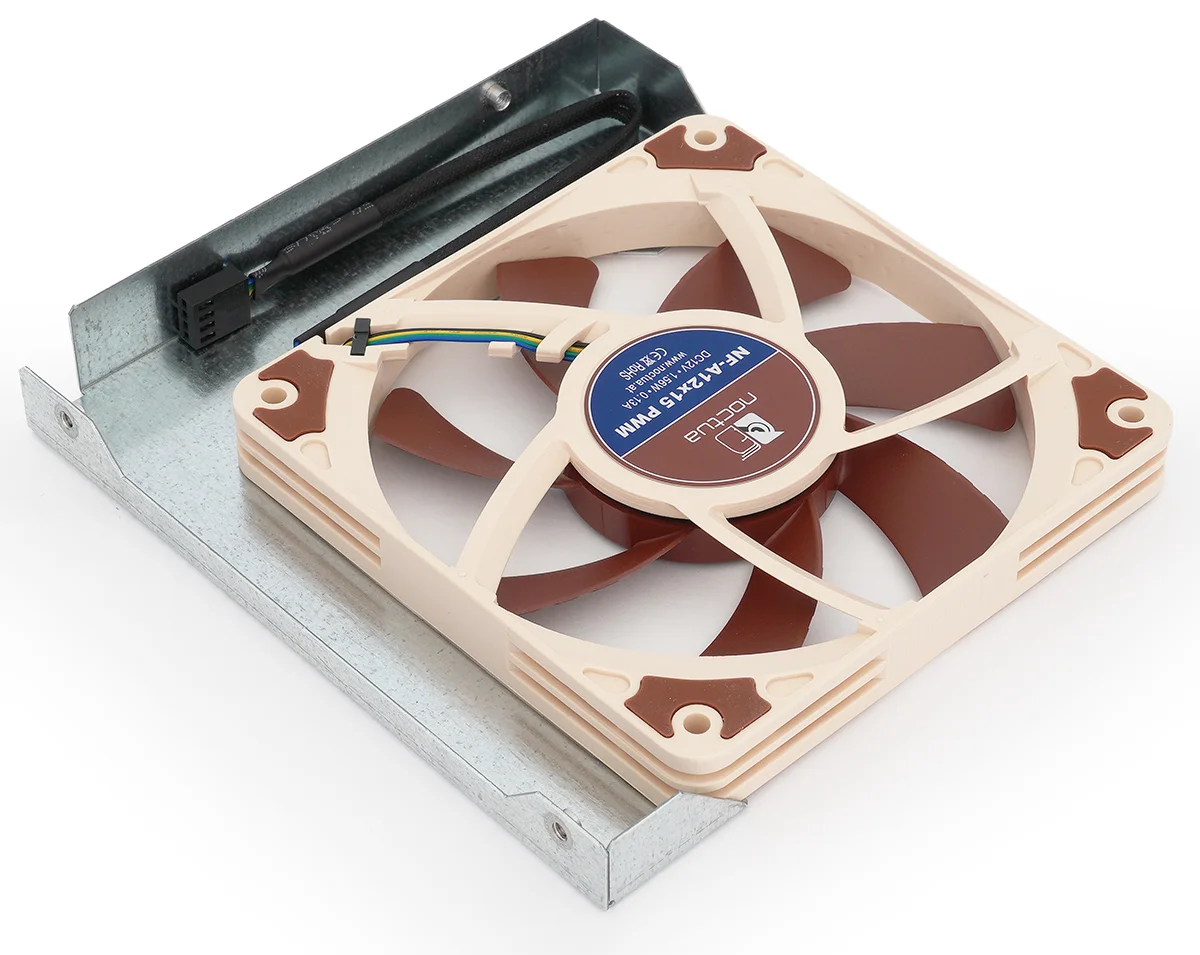

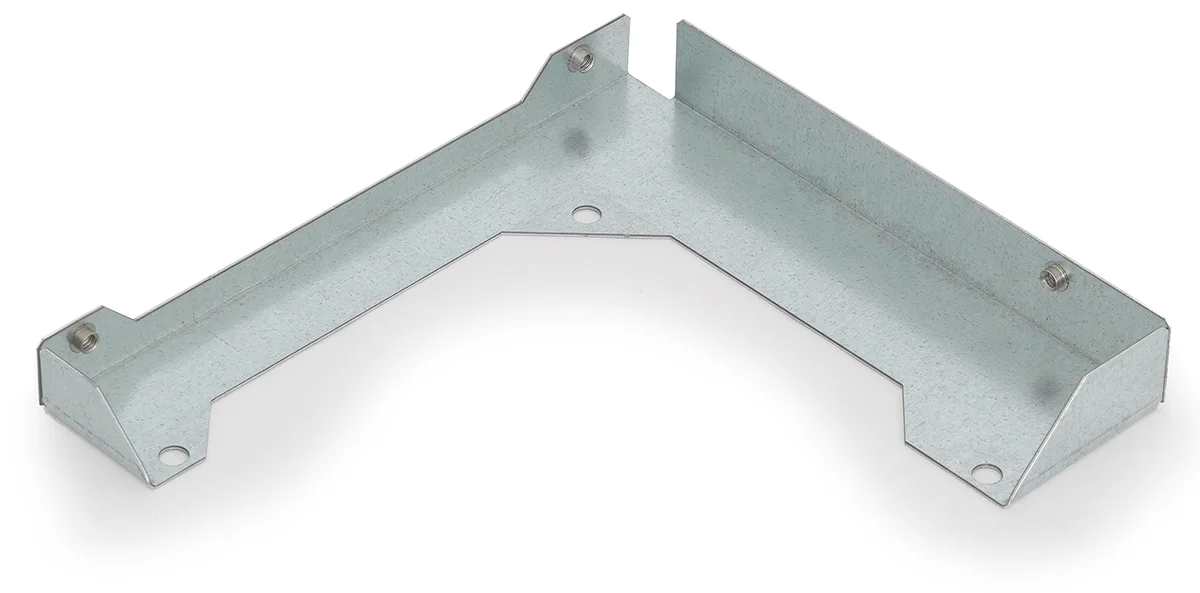

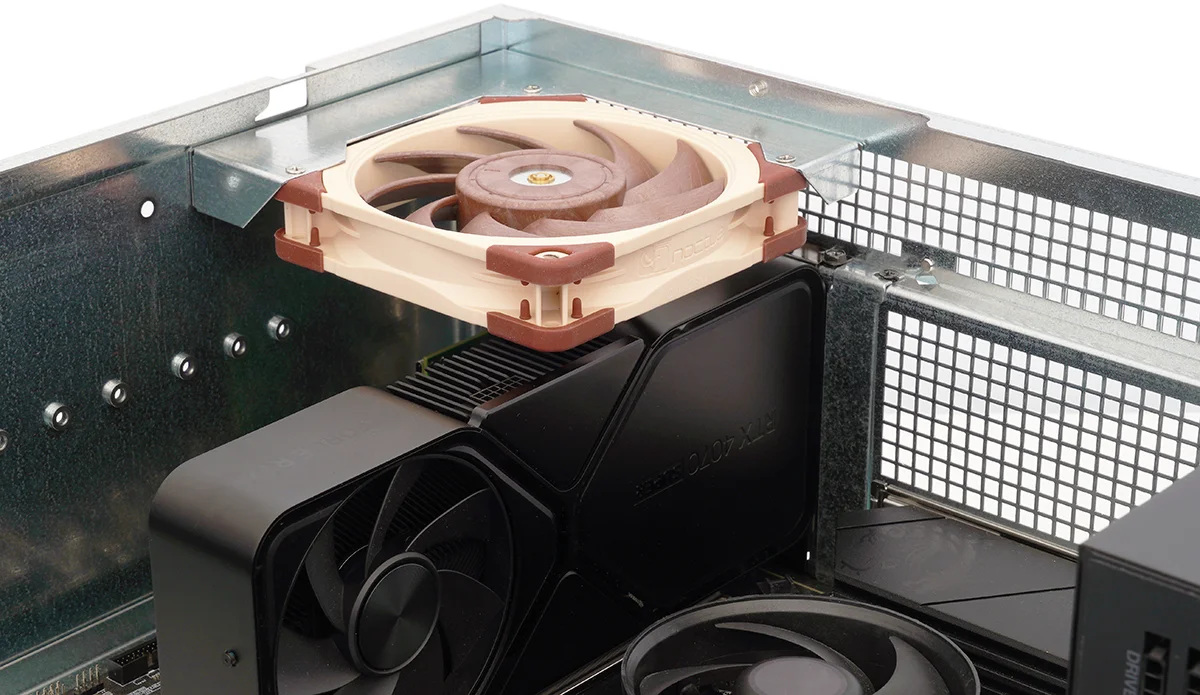

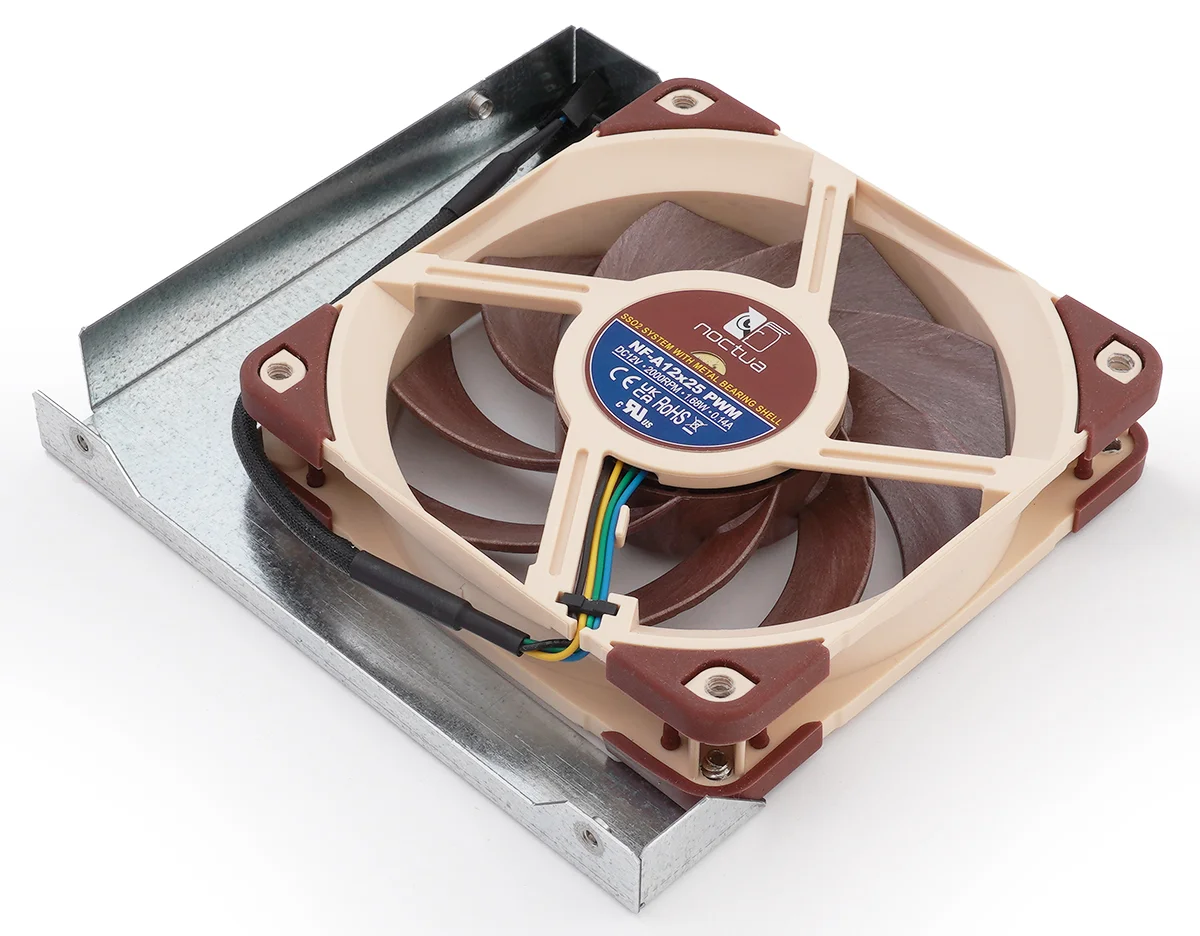

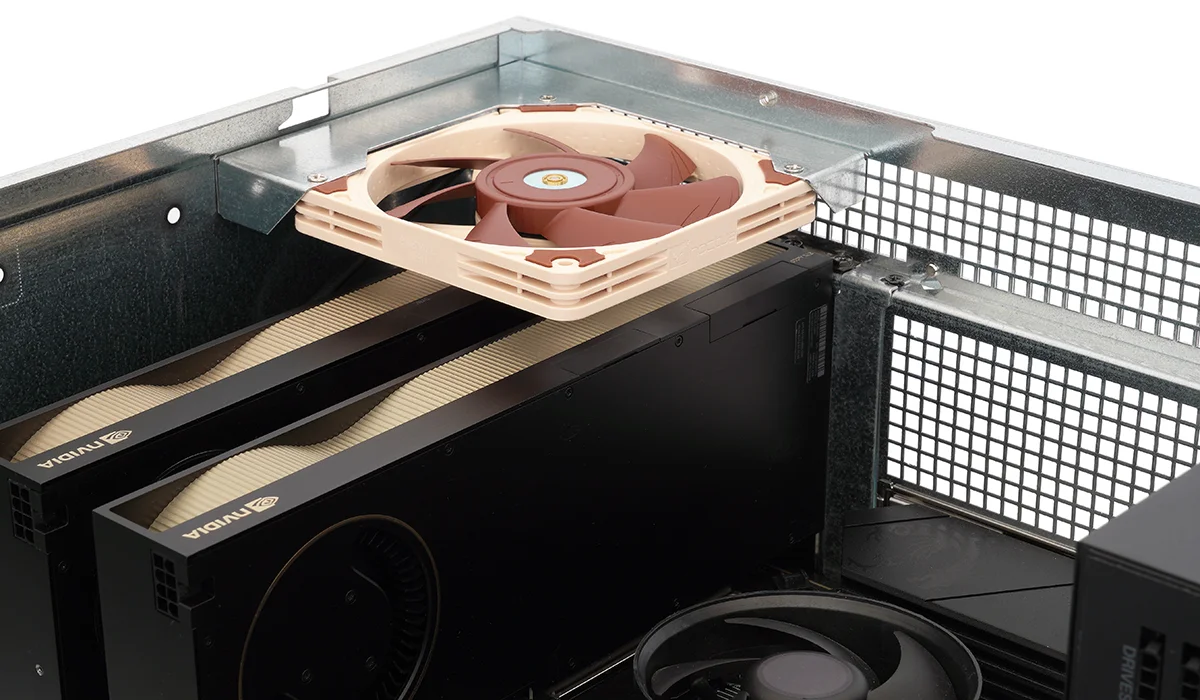

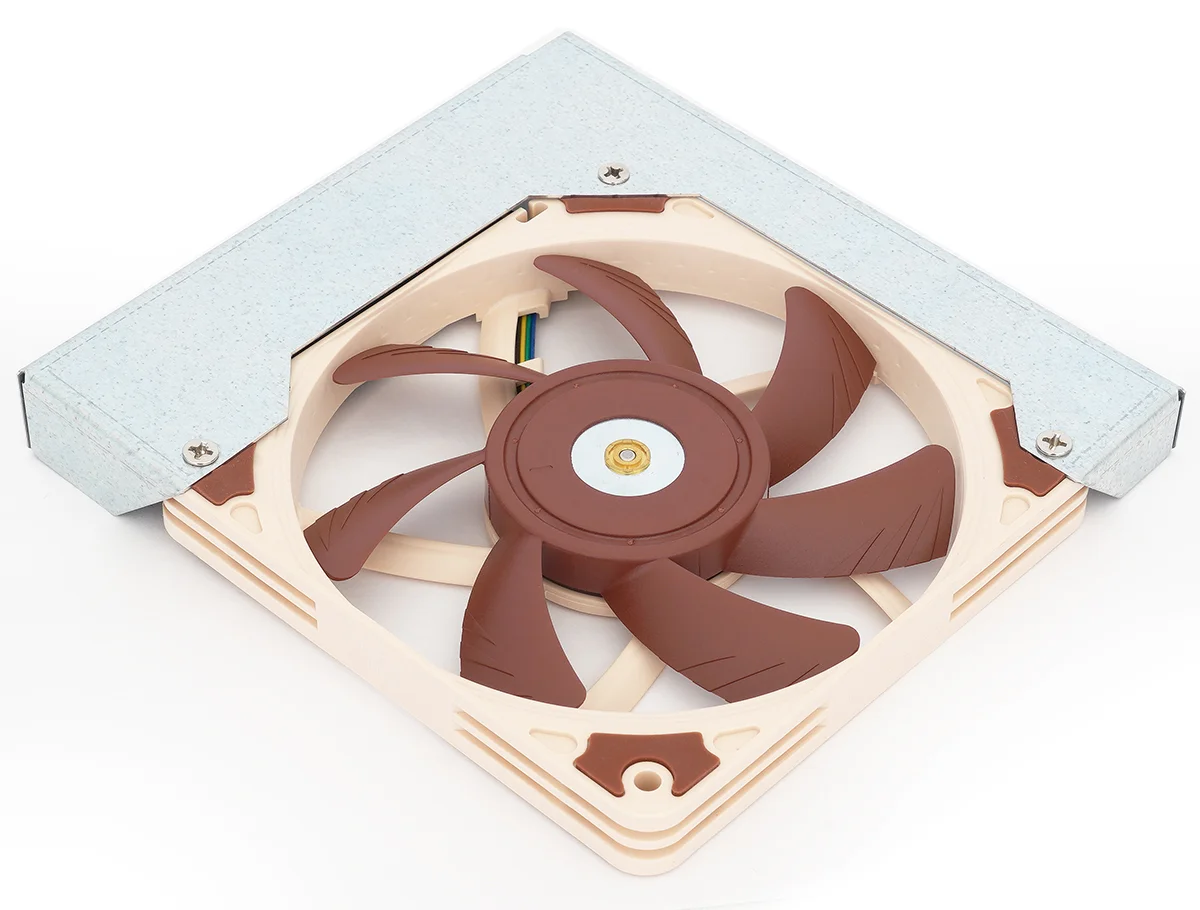

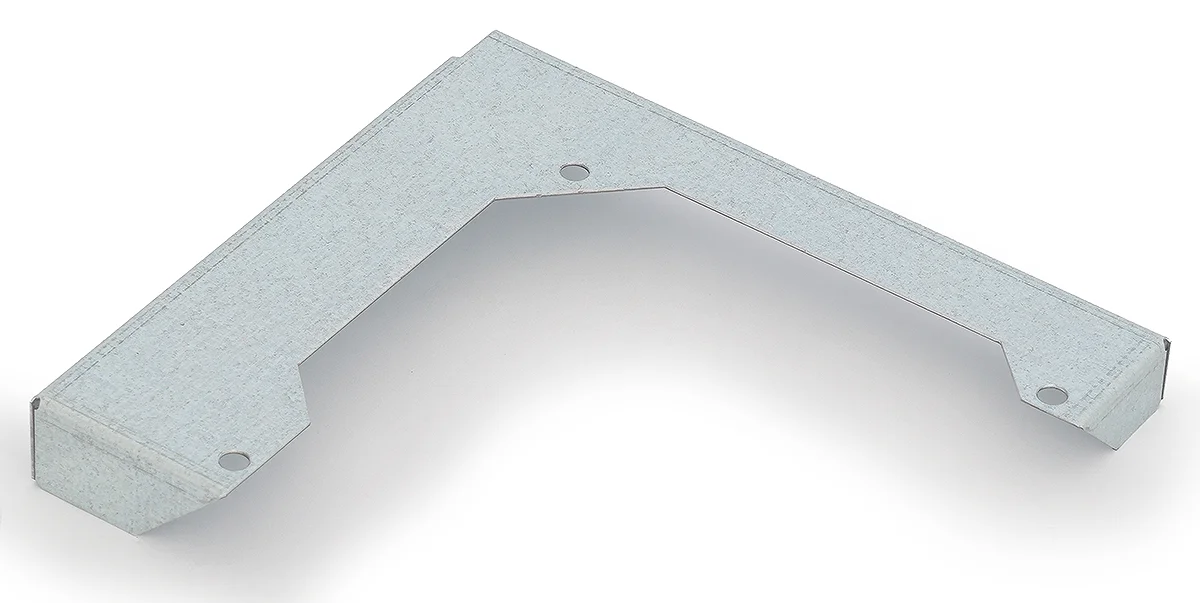

- Optional bracket for one(1) 120mm fan blowing down onto PCIe cards
- PCIe slot to fan adapters available for purchase via the parts tab or Newegg
|
---|
GPU / PCIe Cards
|

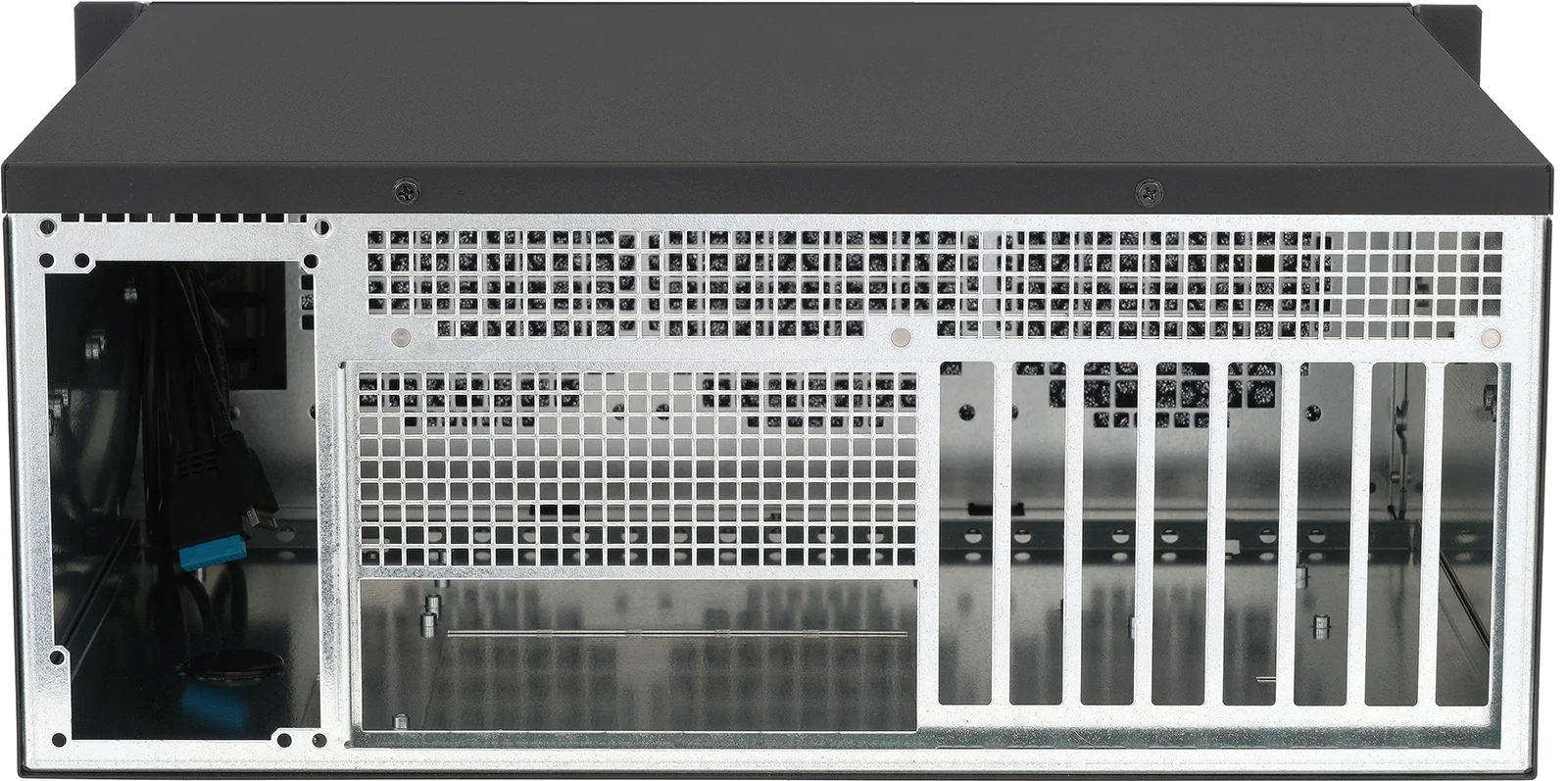

- Eight(8) full height PCIe card slot cutouts

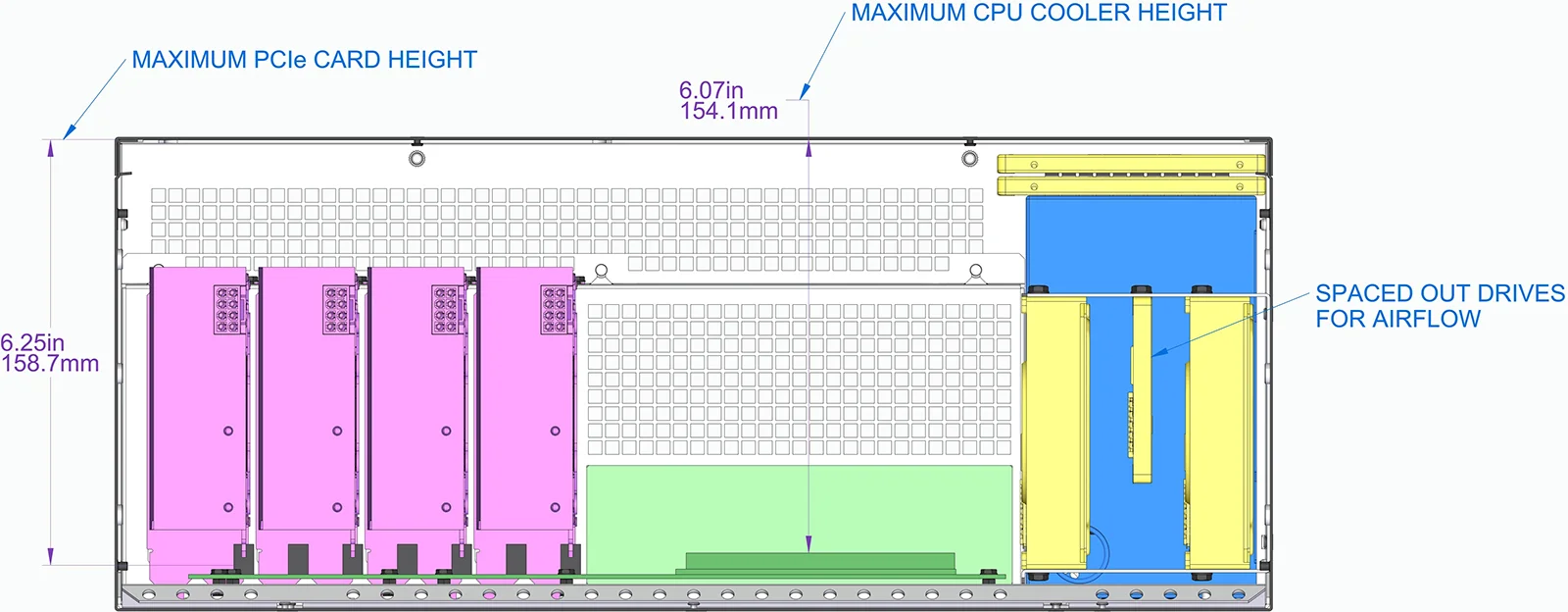

- Maximum card height: 158mm - including power connectors
- Maximum card length with three(3) Noctua A12x25 fans: 375mm
- Maximum card length with Asetek 360mm AIO and three(3) Noctua A12x25 fans: 347mm
- Maximum card length with Asetek 360mm AIO and six(6) Noctua A12x25 fans: 322mm
- Maximum card length with no fans / no AIO cooler: 395mm
- NOTE: Compatibility for GPUs with integrated AIO liquid coolers is limited by case height
|
Storage
|
- Two(2) 2.5" SSD up to 7mm thick, or one(1) 2.5" SSD up to 15mm thick
- Two(2) 2.5" SSD mounting points are located on rear of case above ATX PSU cutout
- NOTE: use of the rear 120mm exhaust fan bracket blocks these 2.5" SSD mounting spots
- Internal mounting bracket with configuration options for:
- Three(3) 3.5" HDD
- or
- Eight(8) 2.5" SSD
- or
- Two(2) 3.5" HDD and three(3) 2.5" SSD
- or
- One(1) 3.5" HDD and five(5) 2.5" SSD
- Sliger recommends use of M.2/NVMe and PCIe based storage on motherboard when possible
- Motherboard PCIe slots can be utilized for M.2 drives via Sabrent PCIe to M.2 or equivalent
- ASUS Hyper M.2 Gen5 PCIe x16 Gen5 to four(4) M.2 Gen5 SSDs
- OWC Accelsior S PCIe x4 to one(1) 2.5-inch SATA SSD
- StarTech PEX4SFF8639U.2 PCIe x4 to one(1) 2.5-inch U.2 NVME SSD
- 3.5" HDD Bracket converts PCIe slot to one(1) 3.5-inch HDD (requires SATA data and power cables)
|

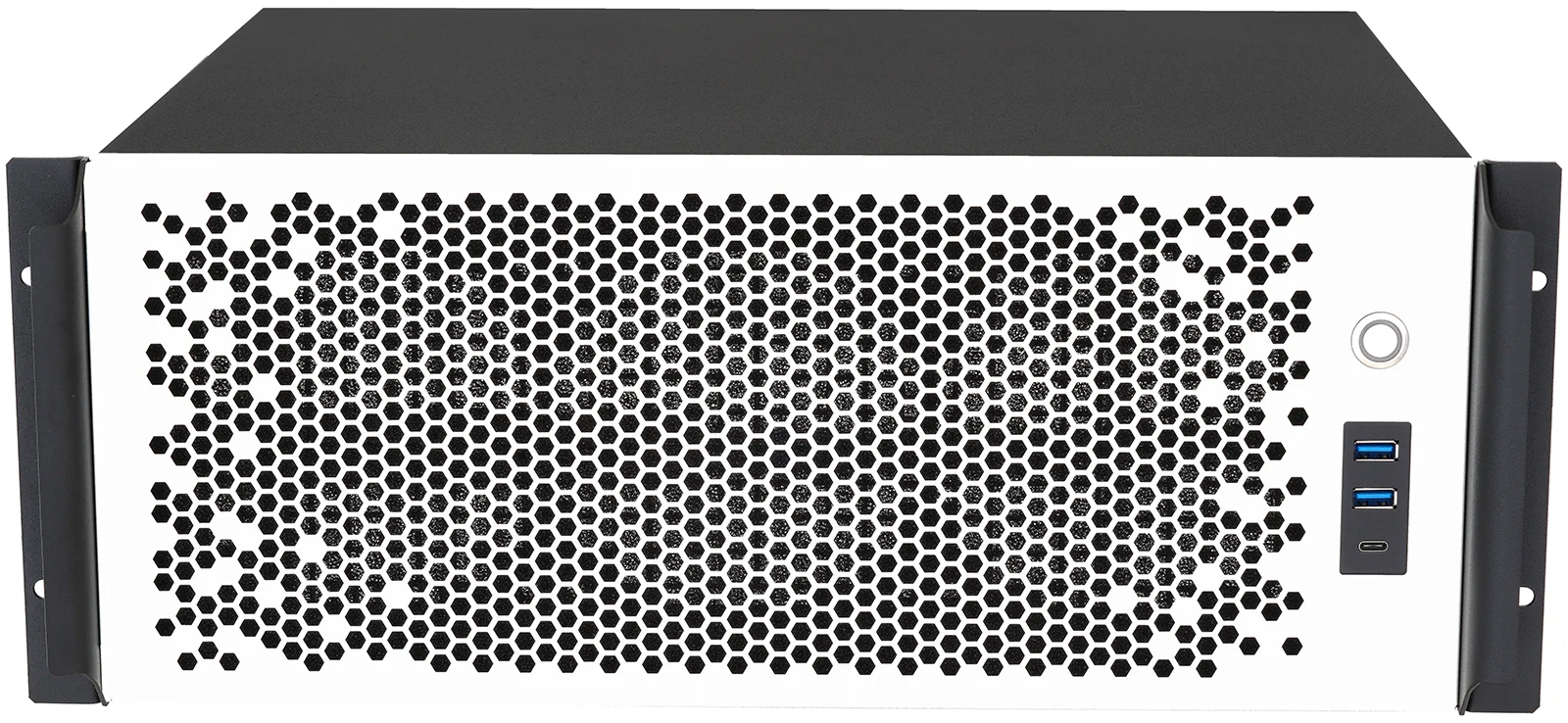

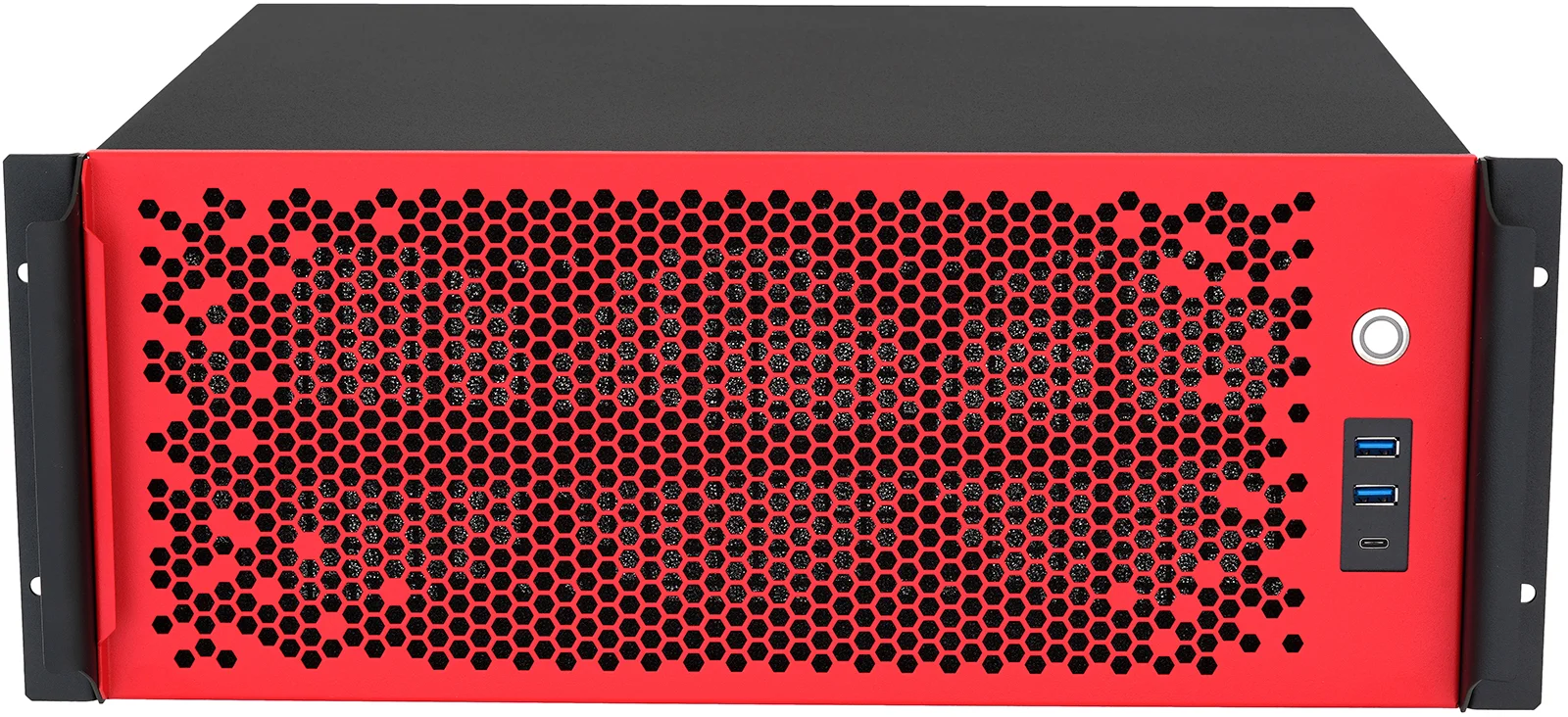

Front Panel I/O
|
- One(1) USB 3.2 Type C 10Gbps Port
- Two(2) USB 3.0 Type A Ports
- One(1) 16mm Momentary Power Button with integrated Power Status LED (Ring Shape, White)
|
Power Supply
|
|
---|
Rack Rails
|
- General Devices C300-S Series
- Rack Rails are not included by default, must be purchased on the configuration or parts page.
- Brand Compatibility
- Brands such as iStarUSA TC Rails are natively compatible.
- Please contact our support team for any compatibility questions.
|
---|
Warranty
|
- Case and Rack Rails
- 5 Year Warranty
- Liquid Coolers & Fans
- 3 Year Warranty
- Please see our warranty policy for additional conditions, exclusions, and limitations.
|
---|
Rev Control
|
- 1.0 (4/18/22 - **/**/**)
- Initial Release
|
Case Mechanicals |
Material
|
- Chassis
- ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel
- Front Panels
- ASTM-A-653 G30 Zero Spangle 18 Gauge Galvanized Steel
- Rack Ears
- ASTM-A-653 G30 Zero Spangle 14 Gauge Galvanized Steel
|
Finish
|
- Semi-gloss fine texture powder coat finish
- Powder coat is an outdoor architectural grade polyester epoxy blend
- Compliant with SAE AMS-STD-595 / FED-STD-595 color number 27038 (ANA 514)

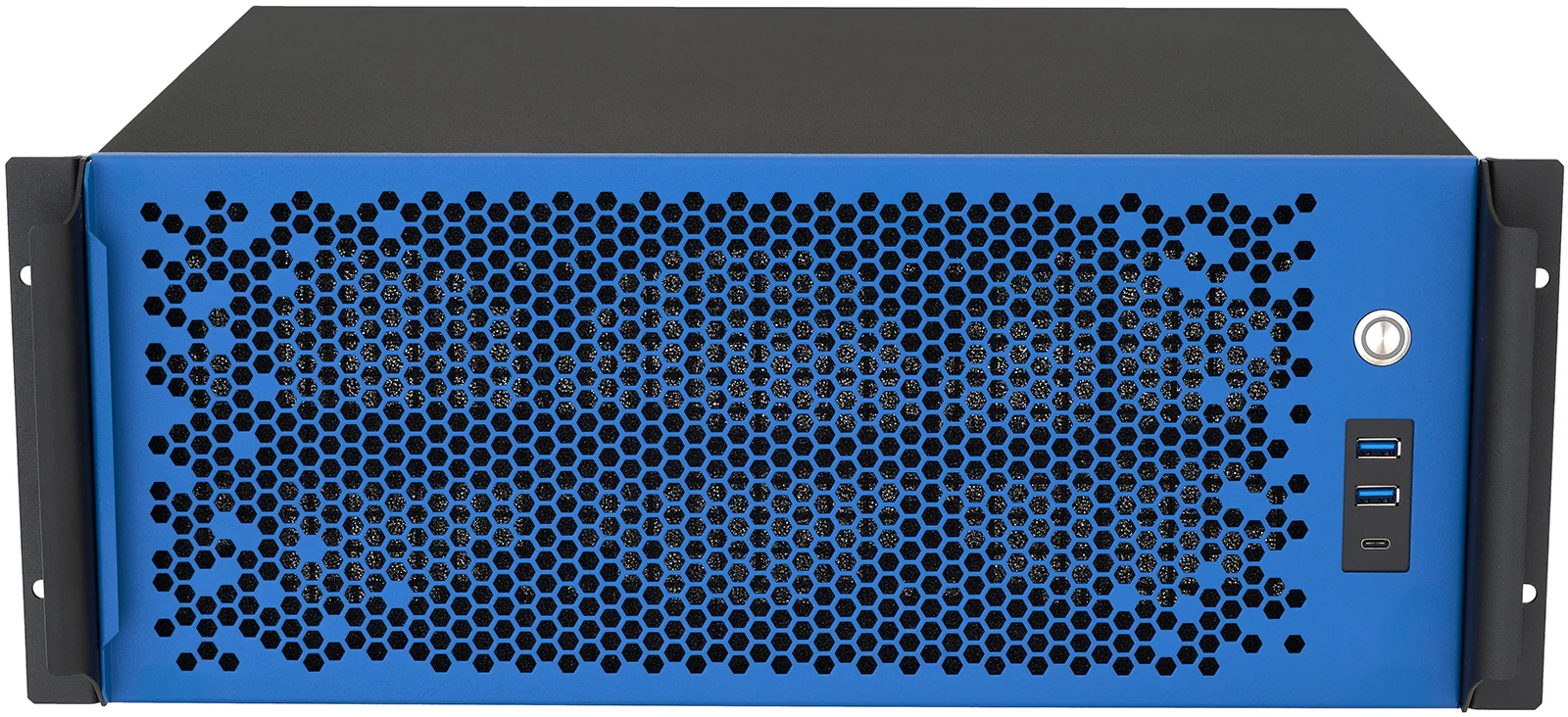

- Custom powder coat finishes are available, additional labor/material charges and 10 unit MOQ will apply.
- Unpainted chassis, panels, or parts available on request (for DIY paint jobs)
|
Branding
|
- Case is unbranded on interior and exterior of chassis.
- Optional logo screen printing (full color) on front panel for business customers, MOQ 10 units
|
Outside Dimensions
|
- 17.04" x 17.00" x 4U (6.96") [DxWxH]
- 433mm x 432mm x 176.75mm [DxWxH]
- Depth from front rack post is 16.89" [429mm]
|
---|
Weights
|
- Chassis
- 18.5lbs [8.39kg]
- Rack Slide Kits
- GDRAIL-14XX - 5.3lbs [2.4kg]
- GDRAIL-20XX - 7.5lbs [3.4kg] - Will Ship In Separate Box
- GDRAIL-26XX - 8.75lbs [3.97kg] - Will Ship In Separate Box
- Fans
- Three(3) fans - 2.1lbs [.95kg] total - .7lbs per fan
- Five(5) fans - 3.5lbs [1.59kg] total
- Six(6) fans - 4.2lbs [1.95kg] total
- Coolers
- Asetek 612X-M2 120mm AIO - 1.7lbs [.77kg]
- Asetek 624S-M2 240mm AIO - 1.6lbs [.73kg]
- Asetek 636S-M2 360mm AIO - 1.9lbs [.86kg]
- Asetek 836SA 360mm Threadripper AIO - 2.35lbs [1.07kg]
- Retention kits - .25lbs [.11kg]
- Brackets
- Rear Fan - .25lbs [.11kg]
- Rear Fan w/ A12x25 - .95lbs [.43kg]
- Packaging Materials (Box, Tape, Foam Corners)
- 3.5lbs [1.59kg]
|
---|
Shipping
|
- 20.5" x 20.5" x 11.5" (Shipping Box Outside Dimensions)
- 20" x 20" x 11" (ID)
- Shipping box is ECT52, Double Wall, Kraft Brown
- Standard SLIGER branded tape, optional unbranded kraft brown tape for business customers
|
Regulatory & Homologation |
Product Lifecycle
|
- Planned availability through 2032
- Extended availability beyond 8 years as built-to-order(BTO) with a 25 unit MOQ
|
EMI / Safety
|
- Case cannot be certified as a standalone item. Certifications must be sought as a fully integrated system.
- Contact us before using case for FCC, CE, UL, IEC, or other safety / regulatory compliance.
- Alternate vent sizes, brackets, EMI springs, and/or powder coat masking, may be required depending on certifications sought.
- UL listed wire, fans, coolers, and materials where possible
|
Industry Standards
|
- 19-inch rack standard
- Electronic Industries Alliance EIA-310-D
- International Electrotechnical Commission IEC 60297-1 / IEC 60297-3-100
- Consumer Electronics Association CEA-310-E
- Deutsches Institut für Normung DIN 41494
|
Environmental
|
- Compliant with RoHS Directive 2002/95/EC, 2015/863 RoHS2, RoHS3 (EU) with all applicable exemptions
- Regulation (EC) No 1907/2006 Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Compliant for all Substances of Very High Concern (SVHC)
- Conflict–Free Sourcing Initiative (CFSI) with Conflict-Minerals Report (CMRT) available upon request
- Compliant with US EPA PBT Section 6 Toxic Substances Control Act (TSCA)
|
Import / Export
|
- Harmonized Tariff Schedule (HTS) / HS Schedule B
- 8473.30.0002 - COMPUTER CASES AND ACCESSORIES
- Export Control Classification Number [ECCN]
- EAR99 LOW-TECHNOLOGY CONSUMER GOODS
- Country of Origin
- United States of America
- "Made in USA" per Federal Trade Commission (FTC) subchapter C title 16 Code of Federal Regulations Part 323
- TAA (Trade Agreements Act) Compliant for GSA Schedules, IDIQ contracts, and DoD contracts
- Compliant with Section 889 of Federal Acquisition Regulation (FAR) of National Defense Authorization Act (NDAA)
|
Guides and Links |
Install Guide
|
- Coming soon! For questions, please reach out to sales@sliger.com or call us at anytime!
|
