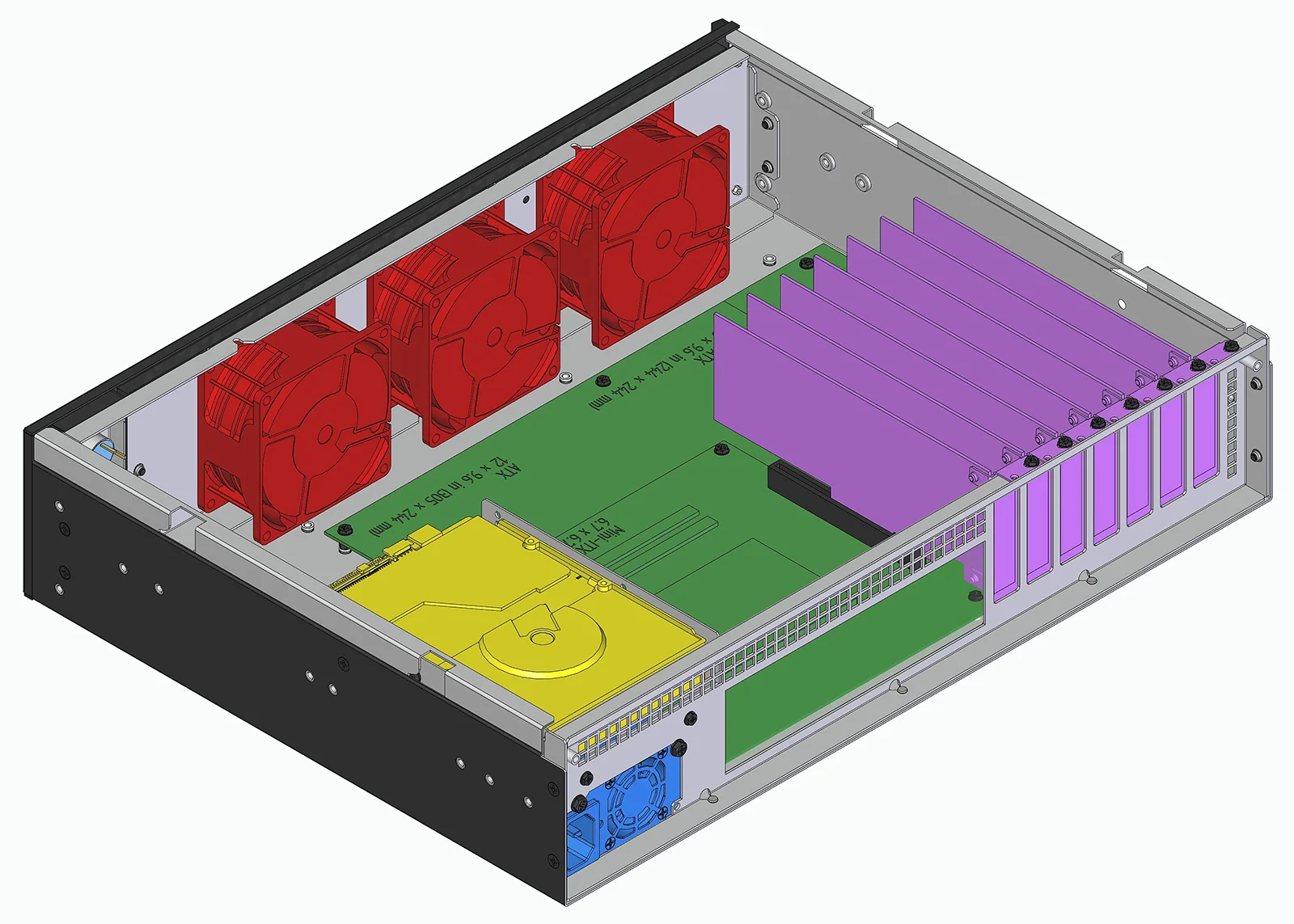

| Motherboard
|
- SSI-CEB (305mm x 267mm) [12" x 10.5"]
- EATX (305mm x 267mm) [12" x 10.5"]
- ATX (305mm x 244 mm) [12" x 9.6"]
- MicroATX (245 x 245mm) [9.6" x 9.6"]
- FlexATX (229 x 191 mm) [9" x 7.5"]
- Mini-DTX (203mm x 170 mm) [8" x 6.7"]
- Mini-ITX (170mm x 170 mm) [6.7" x 6.7"]
|
| CPU Air Coolers
|
|

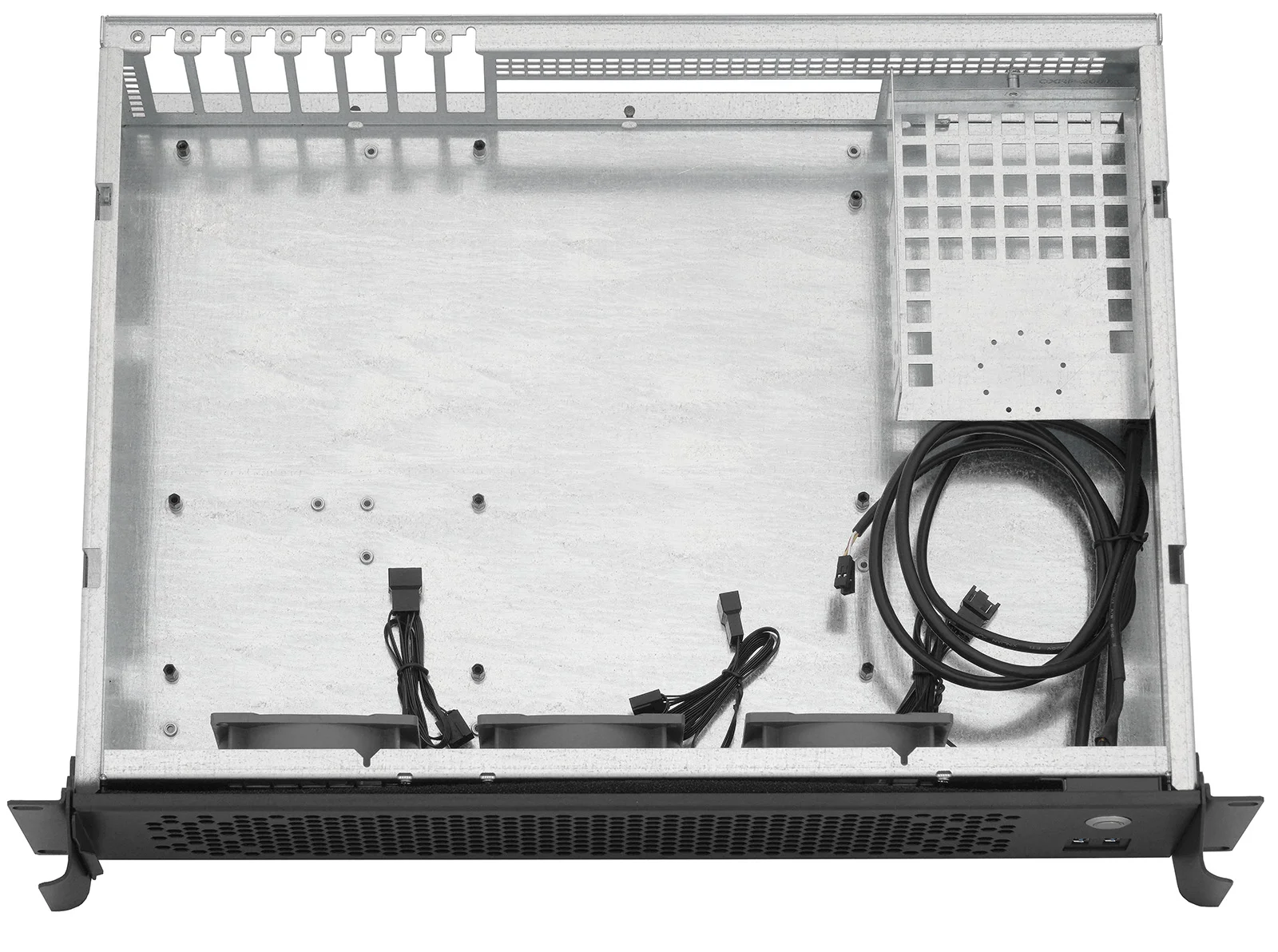

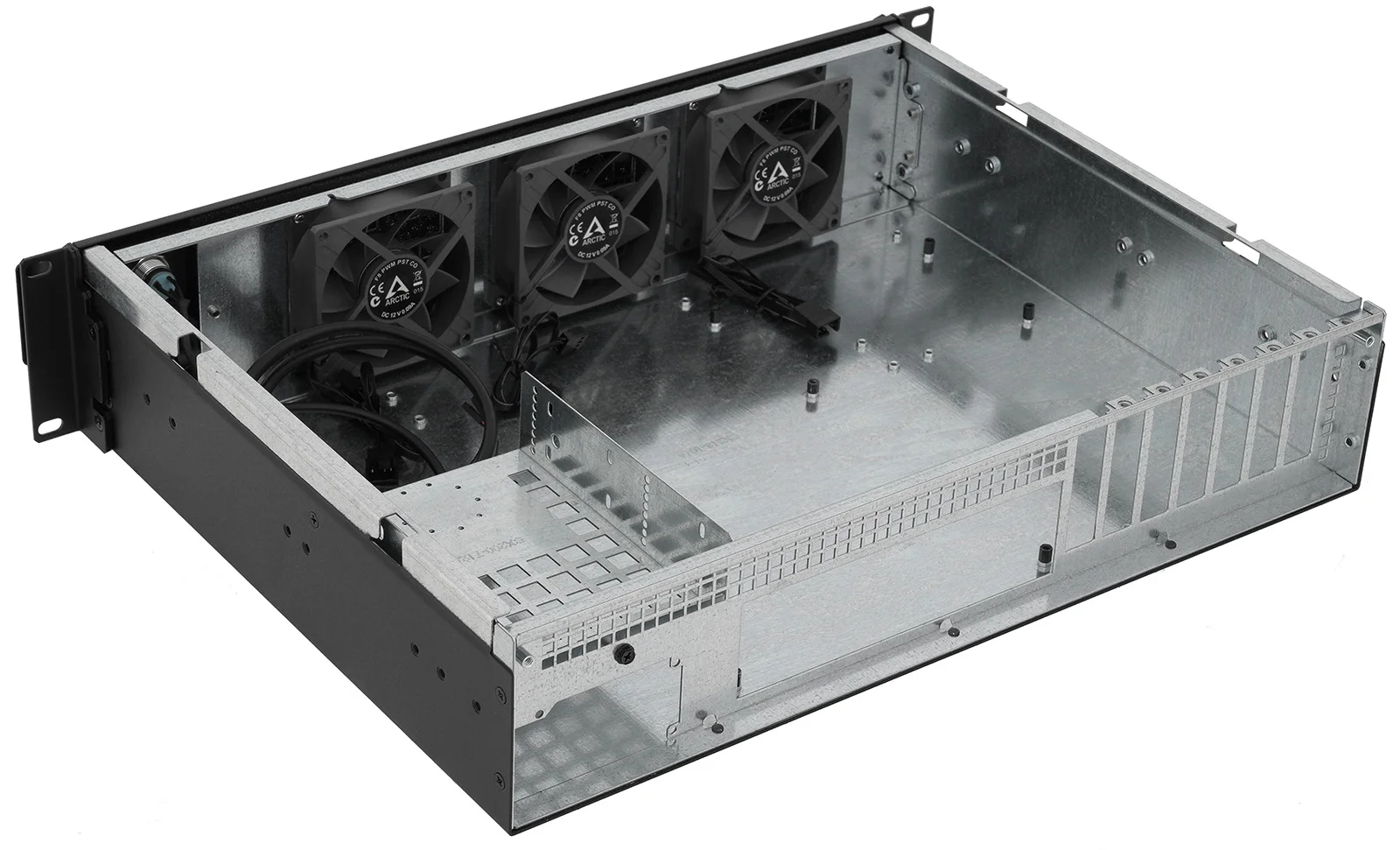

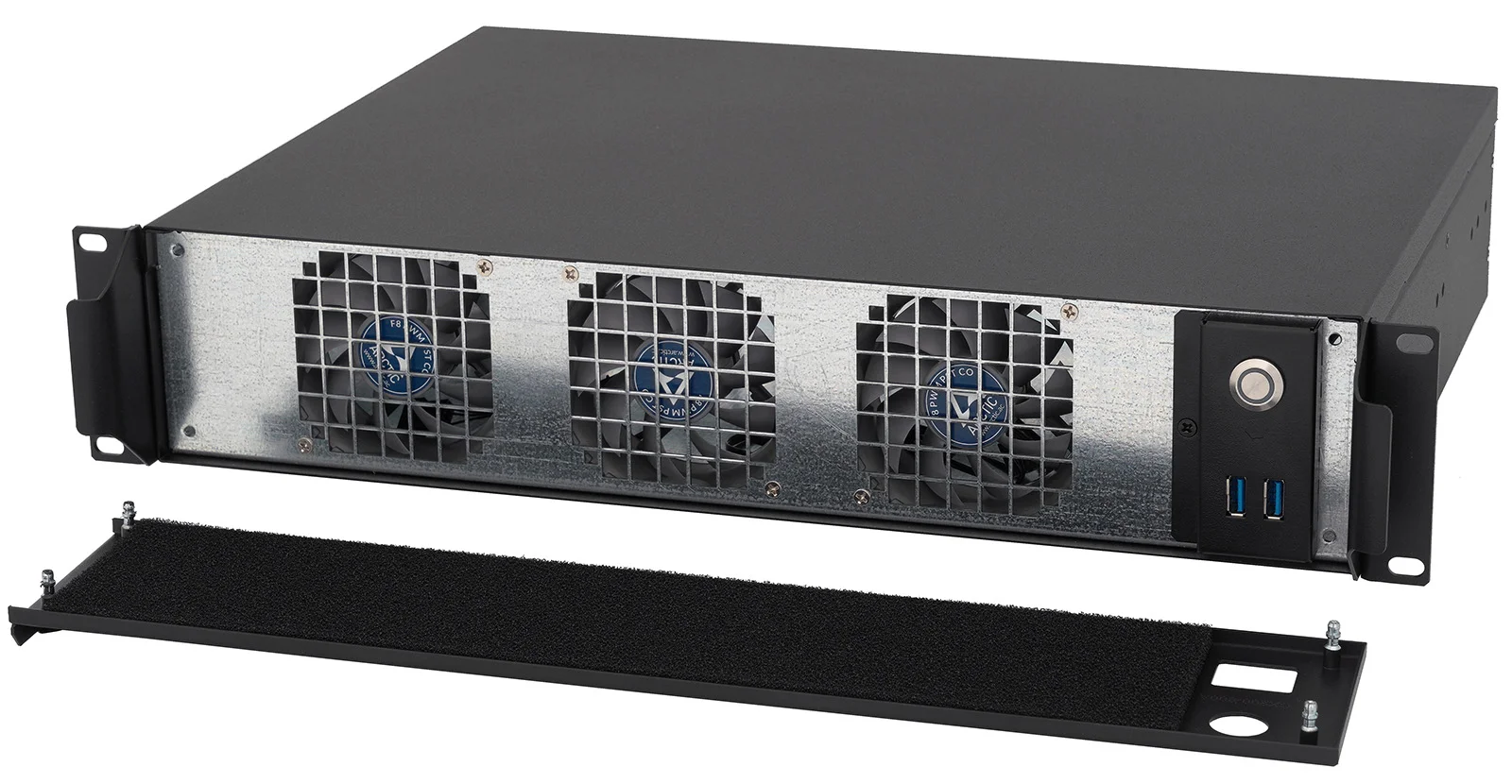

| Fan Mounting
|
- Front
- Three(3) 80mm fans
- Fans are NOT included unless selected in configurator
- LOW NOISE: Noctua NF-A8 PWM, Artic F8 PWM PST CO, Arctic P8 3k RPM, be quiet! BL037, Thermalright TL-B8
- HIGH AIRFLOW: Dynatron, Delta, Mechatronics, or Arctic P8 MAX
- Case includes washable / reusable UL94 open-cell reticulated dust filter
|

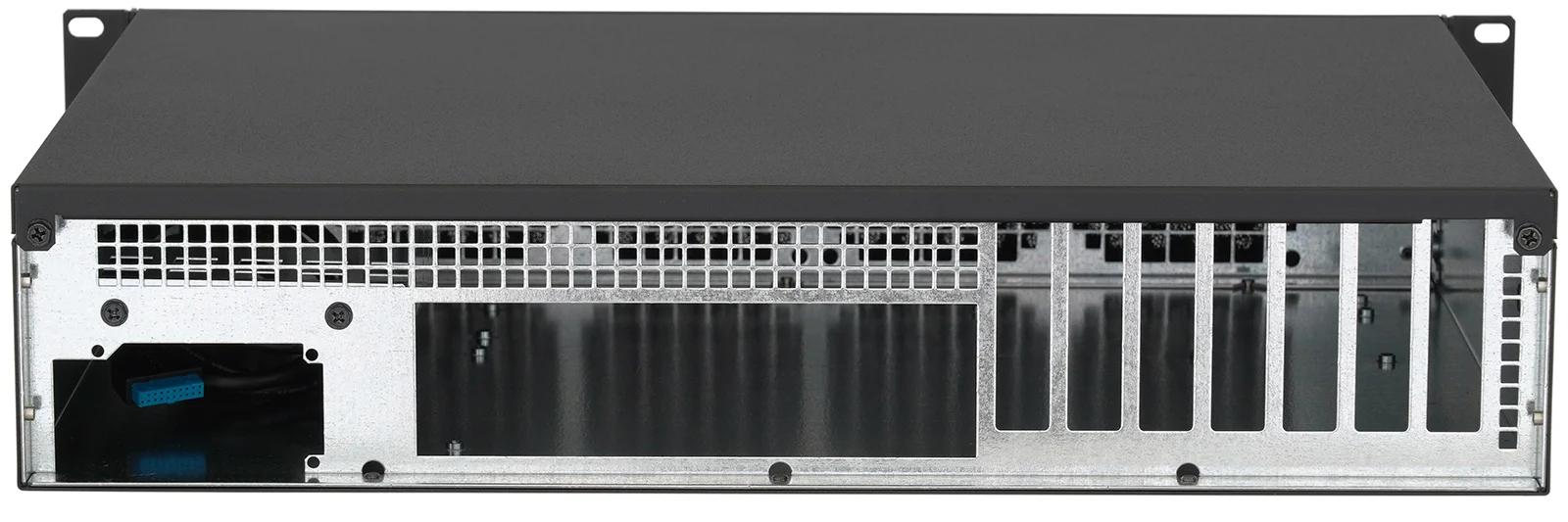

| GPU / PCIe Cards
|

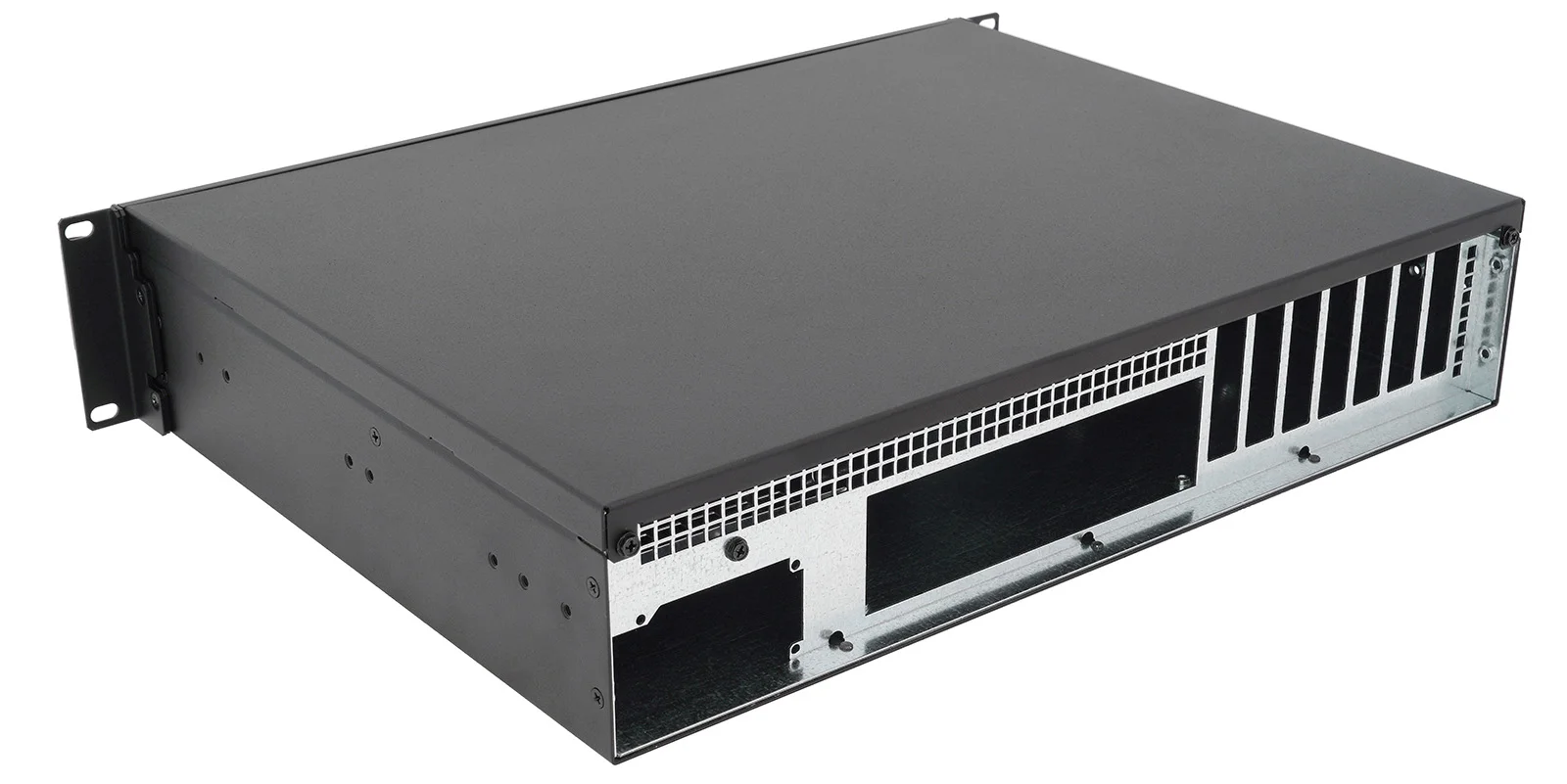

- Seven(7) Half Height Full Length(HHFL) PCIe slot cutouts
- cards may be refered to as 2U height, low-profile, or MD1/MD2/MD3 form factor
- half height vented slot covers are provided with case

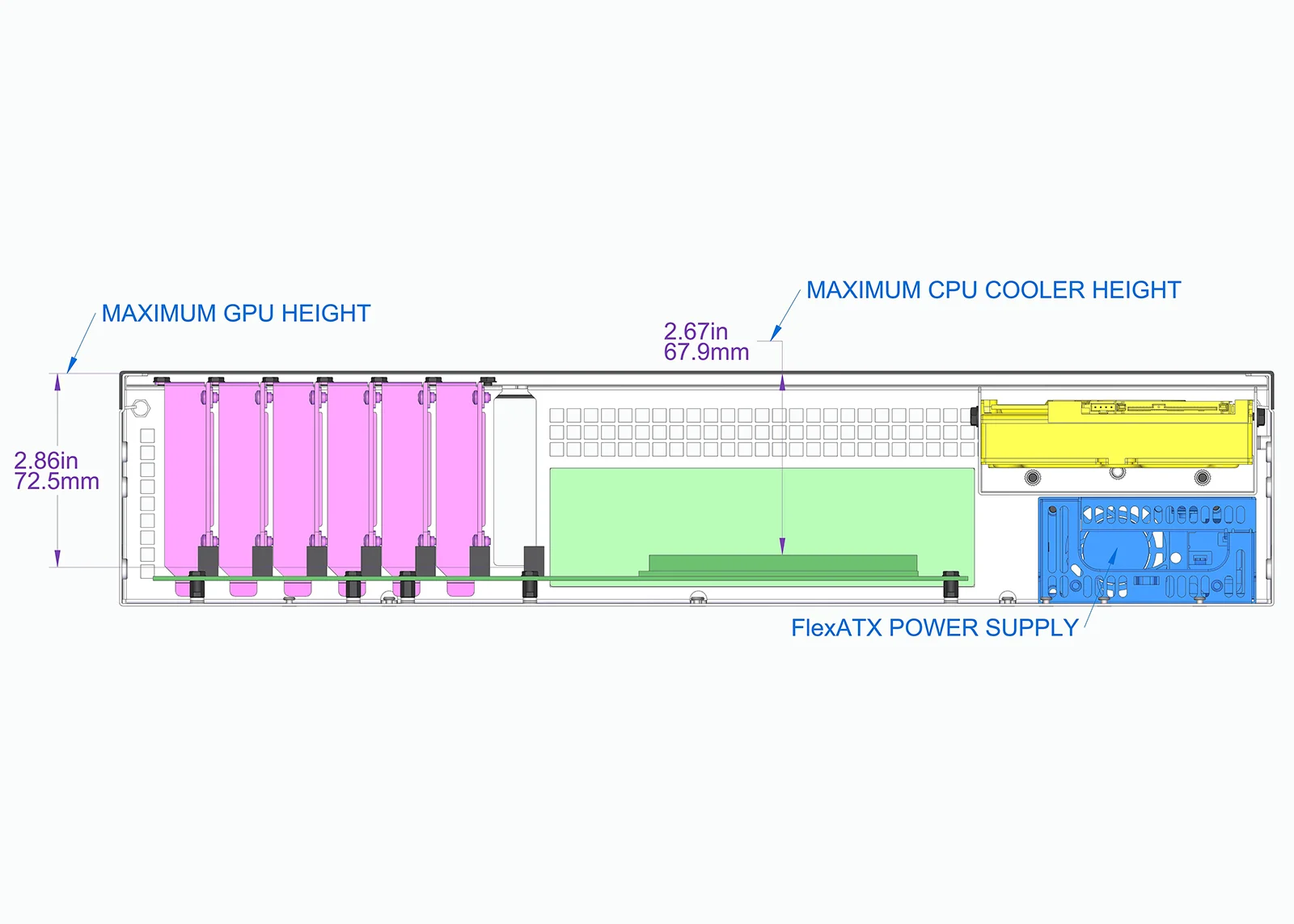

- Max Height: 2.85" [72.3mm] from PCIe finger tab to lid of case
|

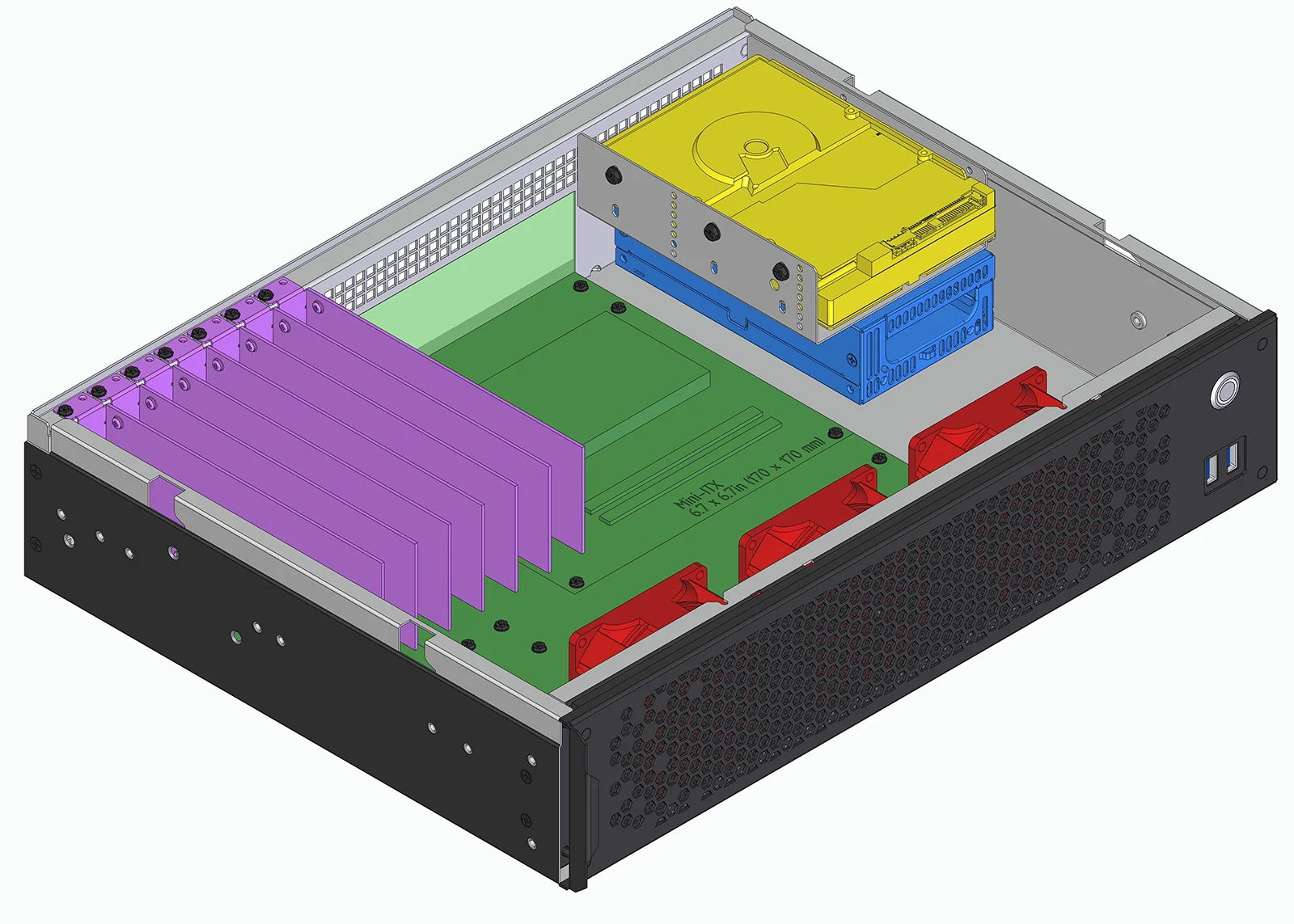

| Storage
|
- Internal mounting bracket with configuration options for:

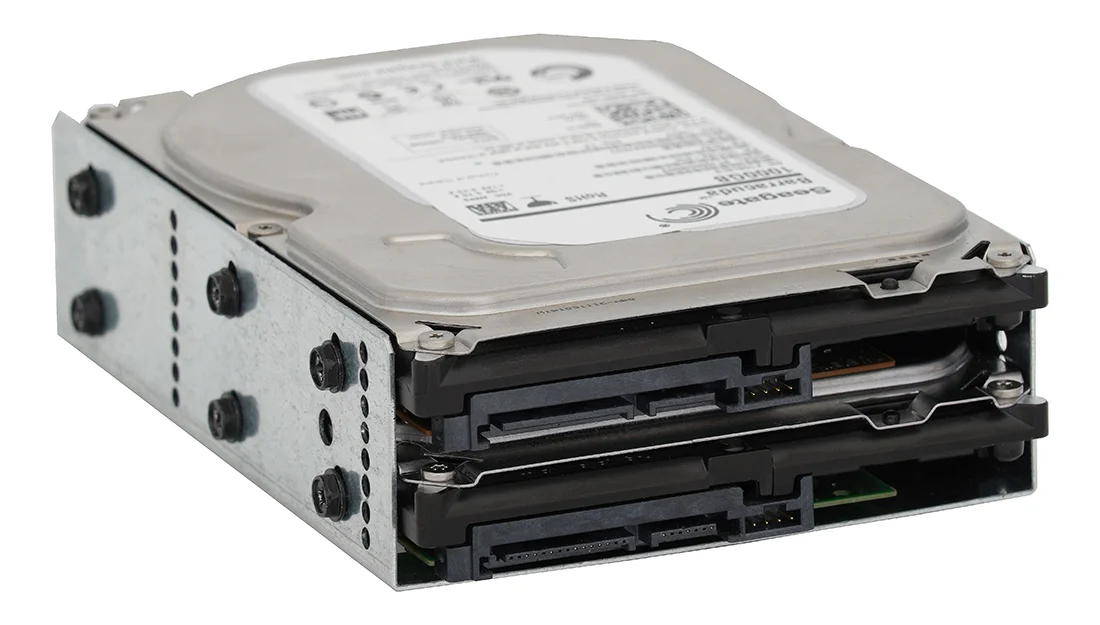

- two(2) single or dual-platter 3.5" HDD
- both 3.5" HDDs must be less 20mm / .760" thick

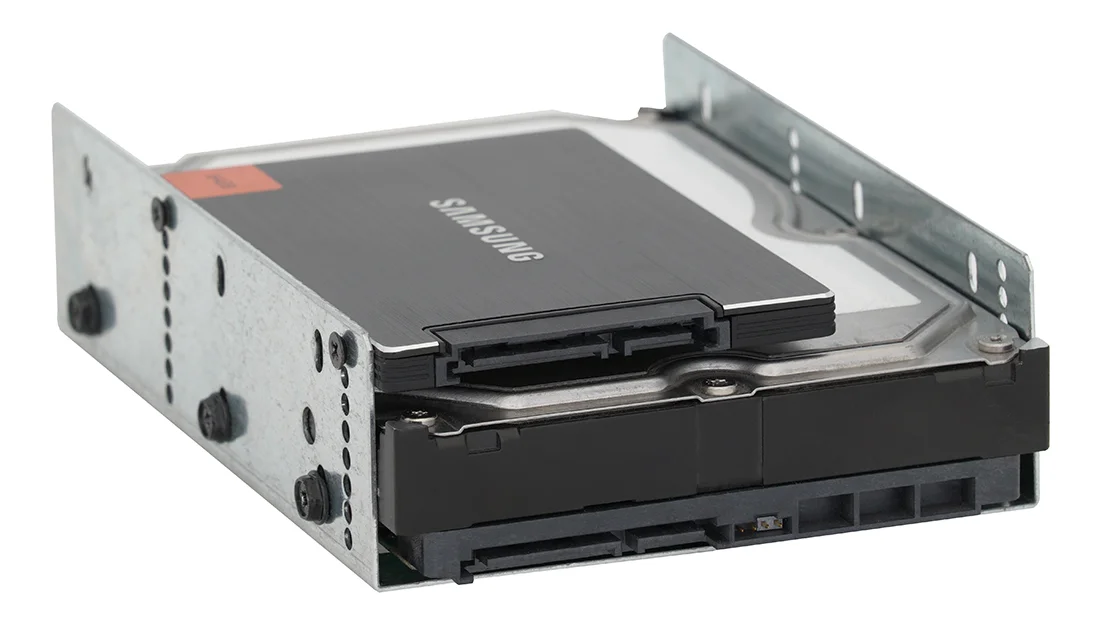

- one(1) full-sized 3.5" HDD, and one(1) 2.5" SSD up to 15mm thick

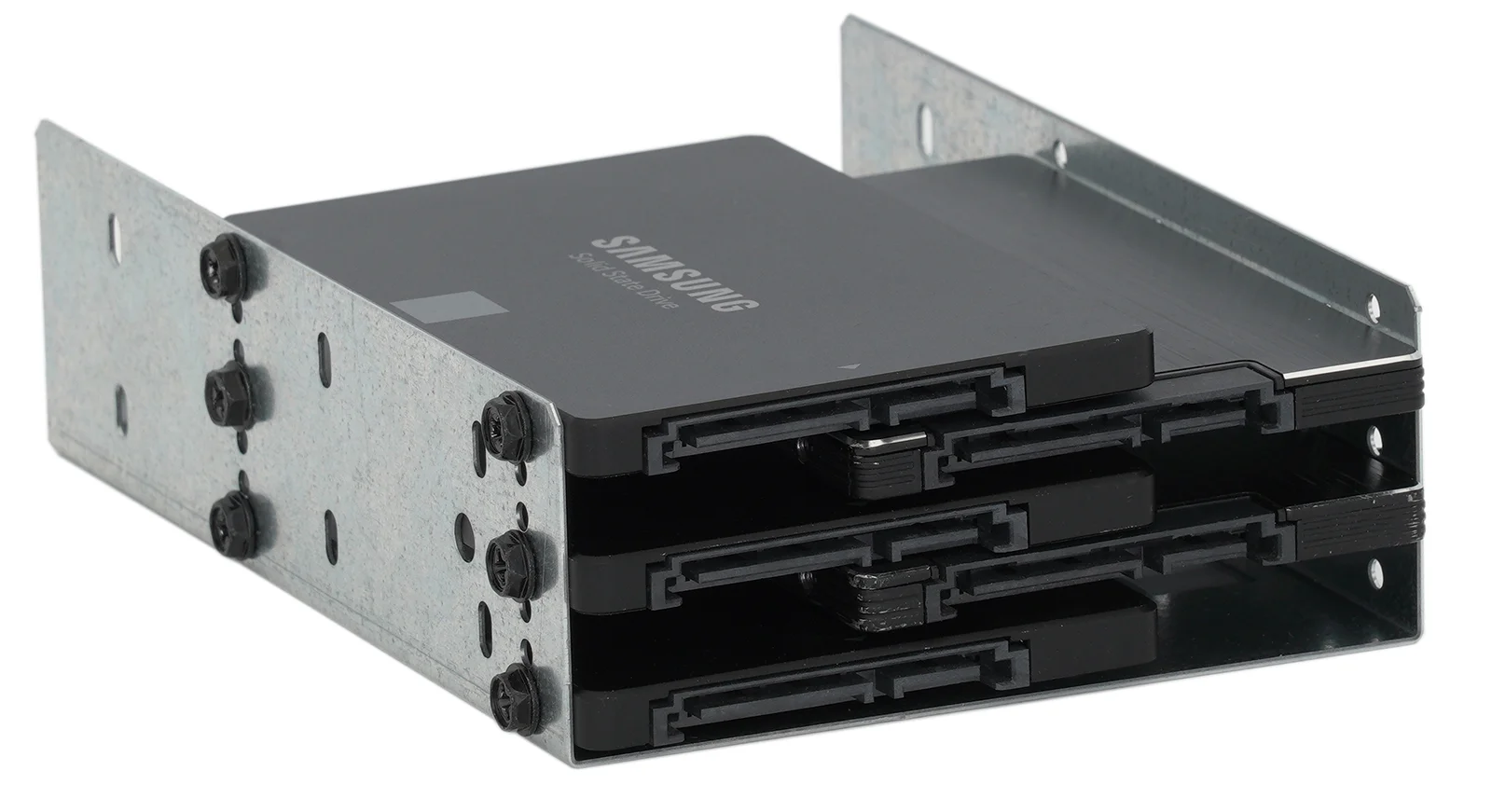

- up to four(4) 2.5" SSD
- SSDs must be 7mm thick
- Sliger recommends use of M.2/NVMe and PCIe based storage on motherboard when possible
|

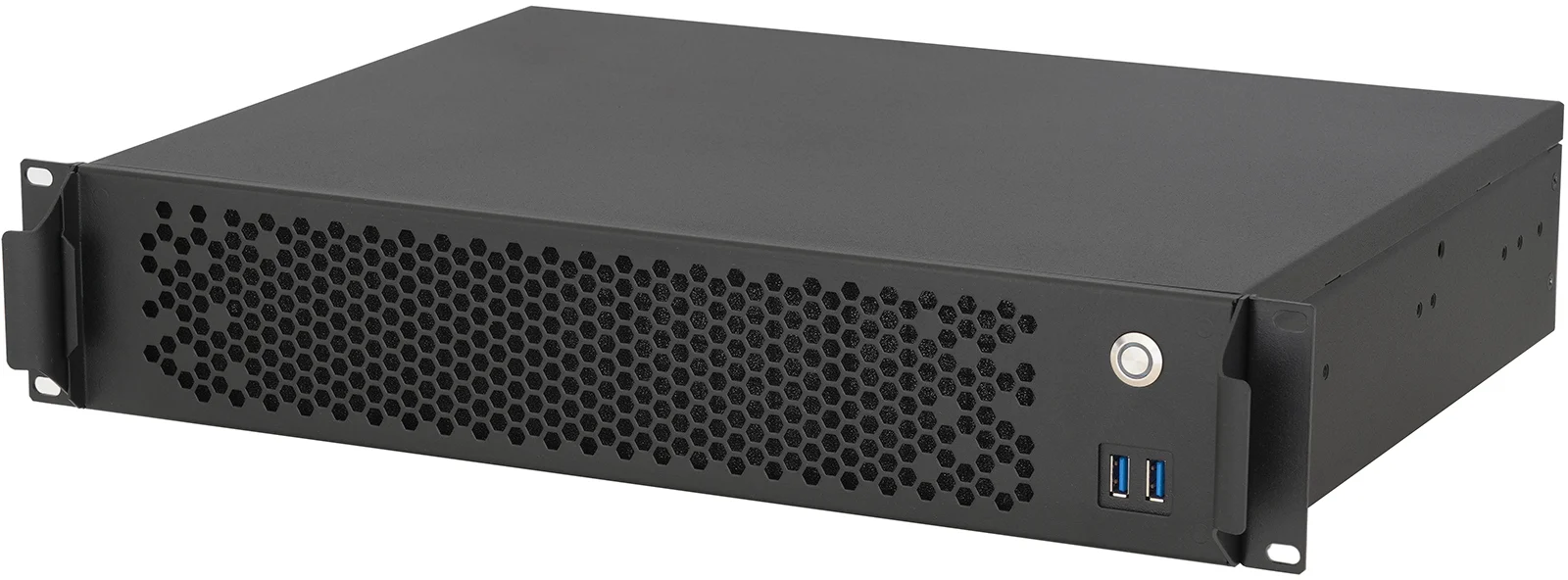

| Front Panel I/O
|
- two(2) USB 3.0 Type A Ports
- one(1) 16mm Momentary Power Button with integrated Power Status LED (Ring Shape, White)
|
| Power Supply
|
- Supports one(1) FlexPSU up to 240mm long
- case variants for redundant, 1U, and TFX power supplies available on request with 10 piece MOQ
|
| Material
|

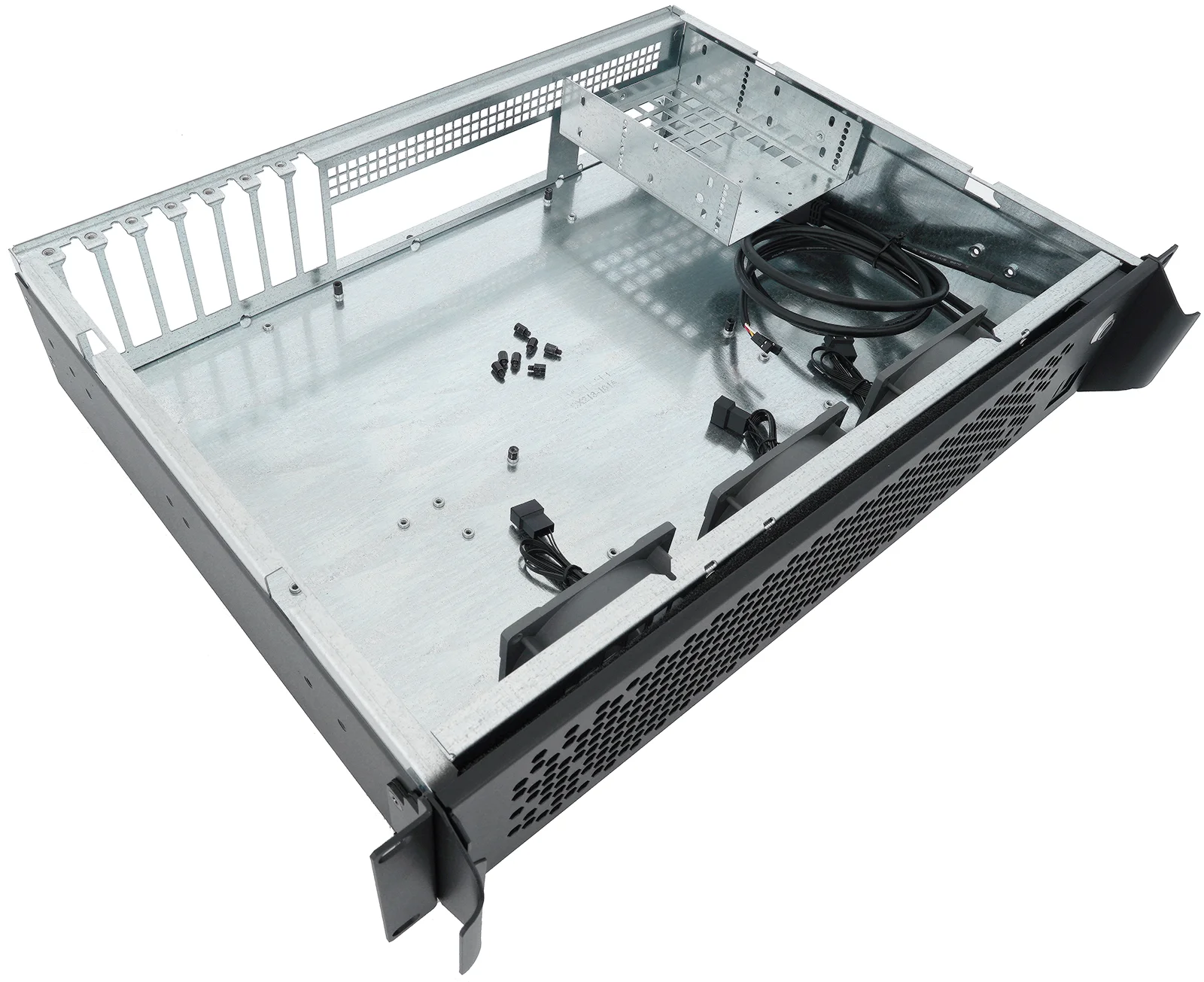

- Chassis
- ASTM-A-653 G30 Zero Spangle 20 Gauge Galvanized Steel
- Front Panels
- ASTM-A-653 G30 Zero Spangle 18 Gauge Galvanized Steel
- Rack Ears
- ASTM-A-653 G30 Zero Spangle 14 Gauge Galvanized Steel
|
| Finish
|
- Semi-gloss fine texture powder coat finish
- Powder coat is an outdoor architectural grade polyester epoxy blend
- Compliant with SAE AMS-STD-595 / FED-STD-595 color number 27038 (ANA 514)
- Custom powder coat finishes are available, additional labor/material charges and 10 unit MOQ will apply.
- Unpainted chassis, panels, or parts available on request (for DIY paint jobs)
|
| Branding
|
- Case is unbranded on interior and exterior of chassis.
- Optional logo screen printing (full color) on front panel for business customers, MOQ 10 units
|

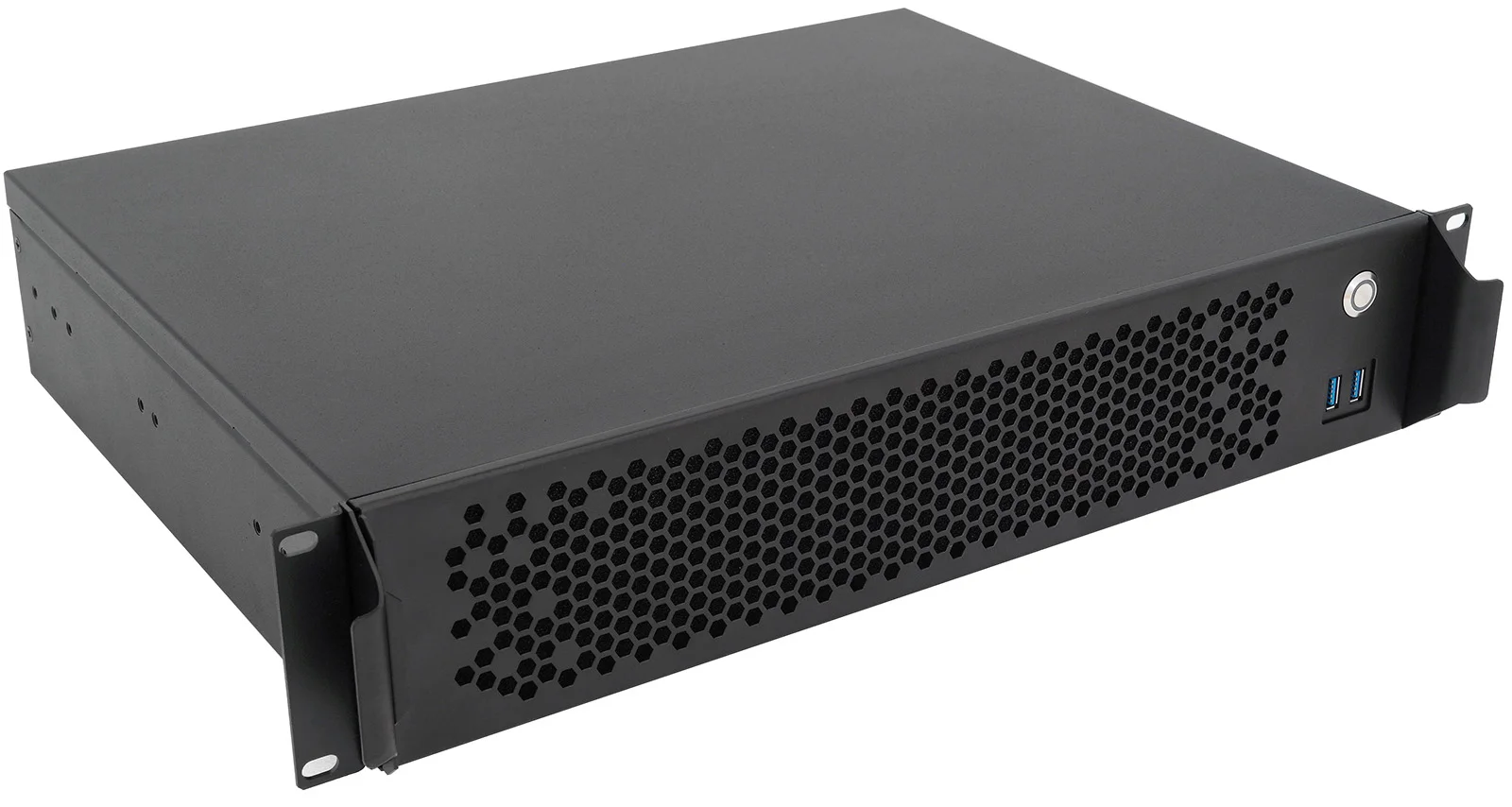

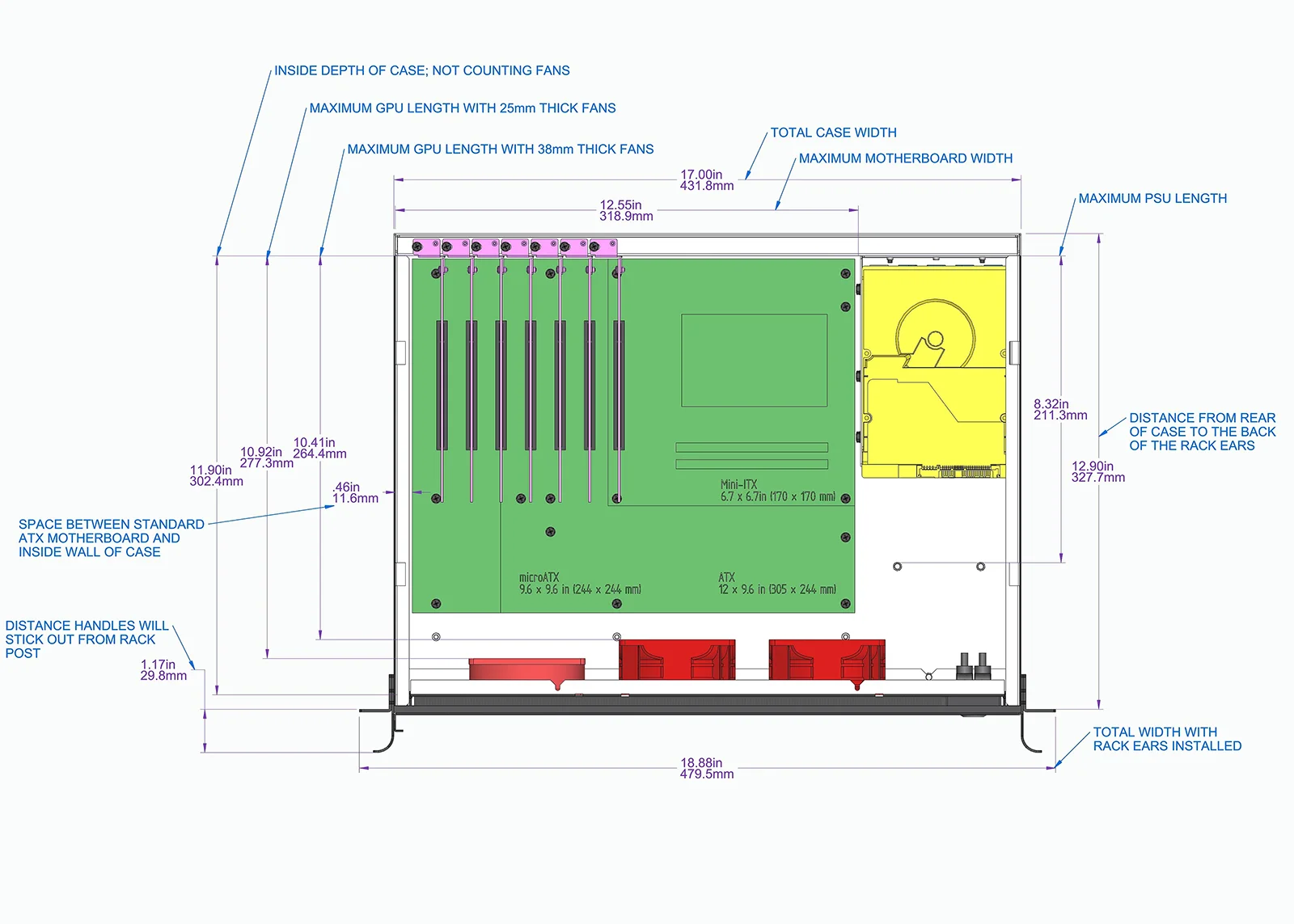

| Outside Dimensions
|
- 13.05" x 17.00" x 2U (3.46") [DxWxH]
- 331.5mm x 432mm x 88mm [DxWxH]
- Depth from front rack post is 12.90" [328mm]
|
| Weights
|
- Chassis
-
- Rack Slide Kits
-
- Packaging Materials (Box, Tape, Foam Corners)
-
|
| Shipping Box Dimensions
|
- 20.5" x 16.5" x 7.5" (OD / Shipping Dims)
- 20" x 16" x 7" (ID)
- Shipping box is ECT52, Double Wall, Kraft Brown, Sliger Branded Tape
|
| Rack Rails
|
- Sliger PM-Series Ball Bearing Slides
- General Devices C300-S Series
|
| Warranty
|
- Case
- 5 Year Warranty [Chassis, USB cables, Power Button, SATA Adapters]
- Liquid Coolers & Fans
- 3 Year Warranty
- Please see our warranty policy for additional conditions, exclusions, and limitations.
|
| Industry Standards
|
- 19-inch rack standard
- Electronic Industries Alliance EIA-310-D
- International Electrotechnical Commission IEC 60297-1 / IEC 60297-3-100
- Consumer Electronics Association CEA-310-E
- Deutsches Institut für Normung DIN 41494
|
| Safety and EMC
|
- Contact us before using case for FCC, CE, UL, or other safety / regulatory compliance
- Alternate brackets or powder coat masking may be required depending on certifications sought
|
| Environmental
|
- Compliant with RoHS Directive 2002/95/EC, 2015/863 RoHS2, RoHS3 (EU) with all applicable exemptions
- Regulation (EC) No 1907/2006 Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Compliant for all Substances of Very High Concern (SVHC)
- Conflict–Free Sourcing Initiative (CFSI) with Conflict-Minerals Report (CMRT) available upon request
- Compliant with US EPA PBT Section 6 Toxic Substances Control Act (TSCA)
|
| Federal Acquisition
|
- TAA (Trade Agreements Act) Compliant for GSA Schedules, IDIQ contracts, and DoD contracts
- Compliant with Section 889 of Federal Acquisition Regulation (FAR) of National Defense Authorization Act (NDAA)
|
| HTS Tariff Code
|
- 8473.30.00.02 - COMPUTER CASES AND ACCESSORIES
|
| Country of Origin
|
- ECN Code
- EAR99
- Contact us for current regulatory compliances
- RoHS/RoHS-2/RoHS-3 Compliant
- REACH Compliant
- US EPA SVHC Compliant
- Verified Conflict Minerals Free
- UL listed materials, plastics, filter, and wire
|
| Rev Control
|
- 1.0 (11/01/23 - **/**/**)
- Initial Release
|
|
